| 電圧: | 380ボルト | 原産地: | 中国(本土) | 銘柄: | 王ウサギ | モデル番号: | RC1325D | 重量: | 1800キログラム | 力(W): | 9kwスピンドル | CNCまたはない: | CNC | 保証: | 1年 | 条件: | 新しい | 認証: | ce & fda | 次元(L*W*H): | 3200 * 2300*1900ミリメートル | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | モデル: | RC1325D | スピンドル: | 9キロワット空冷スピンドル | 制御システム: | 台湾synitec | 真空テーブル: | で | 集塵機: | で |
包装
| 包装: | 合板ボックス |
Rabbit 1325 Auto tool changer cnc router price :
1.Adopt 9KW air-cooling spindle low noise, strong cutting ability, to ensure the long time working
2.RC-1325D is Disc type Automatic Tool Change machine, tool Magazine Capacity-8.
3.Whole machine is welded with seamless steel structure, the regidity is good , not easy to be deformed.The side board of gantry adopt steel structure.
4.All adopt Taiwan Hiwin linear square rail, heavy loading, stable working , high precision and long life time. Adopt imported ballscrew , high precision.
5.Compatibility, compatible Type3/ Artcam/ Castmate/Wentai, and so on a variety of CAD/CAM design software.
6.6 zones vacuum table, it is a professional wood door making and furniture making machine. It makes your work more convenient and more efficient.
Technical information :
X Y Z axis Working size | 1300mm×2500mm×200mm(51.1×98.4×9 inches) |
Max Idling speed | 50m/min |
Max working speed | 30m/min |
Reposition Accuracy: | <±0.04/300mm |
frame: | Welded steel |
Table structure: | Vacuum table(optional: T-slot table) |
X-Y-Z Structure: | X Y Rack and Pinion , Z axis: Ball screw |
Command | G code, u00*, mmg*, plt |
Control System | Taiwan SYNTEC Controller(option Taiwan LNC) |
Rail | Taiwan Hiwin Square linear guide rail |
Power | AC 380V/50Hz (optional:AC220V/50HZ) |
spindle Power | China 9KW air-cooling spindle (9KW HSD Spindle optional) |
Spindle speed | 0-24000rpm/min |
Drive motor | Chinese Servo motor (Japanese Yaskawa servo optional) |
Software | Ucancam / Type3/ Artcam |
Dust Collector Power | 3.0kw |
Vacuum pump | 5.5kw |
collet | Er32 :3.175mm,6mm,12.7mm |
tool | Automatic tool changer: 8 pieces |
Packing dimension | 3200× 2300 ×1900mm |
Gross weight | 1800 kg |

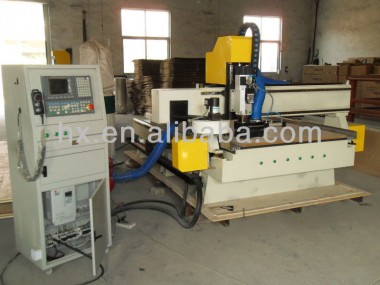

Machine detailed picture:
Guarantee and After Sales Service
1.One year warranty,main parts are free of charge when problems happened during the guarantee period.
2.We provide the consumable parts at agent price when you need replacement
3.24 hours online service each day,free technical support with different languages.
4.We provide door to door technical support ,if necessary.
Other availabe models
RC-3030 300*300mm RC-4040 400*400mm RC-6090 600*900mm
RC-1212 1200*1200mm RC-1218 1200*1800mm RC-1224 1200*2400mm RC-1325 1300*2500mm
RC-1325S 1300*2500mm RC-1530 1500*3000mm RC-2030 2000*3000mm .
