| 電圧: | 380v50hzまたはオプション | 原産地: | 中国(本土) | 銘柄: | lho | モデル番号: | kl450 | 重量: | 2900キログラム | 力(W): | 45キロワット | 保証: | 1年 | 条件: | 新しい | 認証: | ceiso | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | 名: | ペレット工場はラインを作る | 容量: | 600kg/h | ペレットの大きさ: | 4〜12ミリメートル | 長さ: | 調整する | ローラー材料: | 合金鋼 | 生活とフラットダイローラー: | 時間以上2100 | 完成品: | 木質ペレット | 必要とする水分: | 8-20% | 必要とする長さ: | 3-5mm |
包装
| 包装: | 標準的な輸出木製ケース |

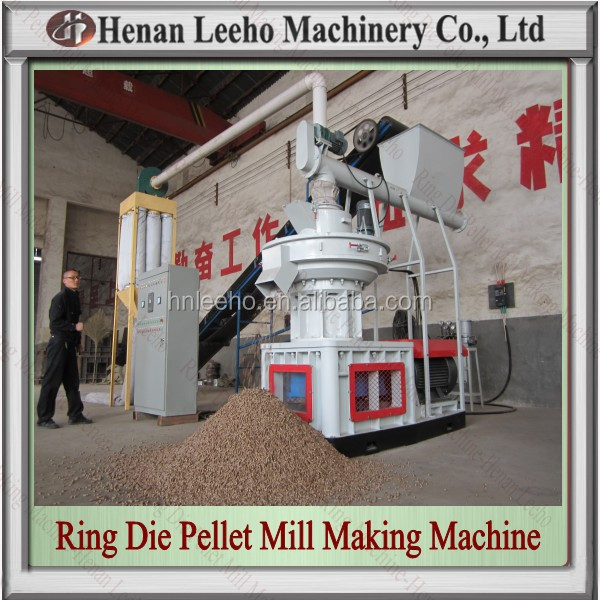

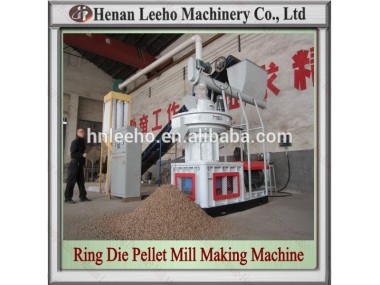

Centrifugal Ring Die Pellet Mill Machine
Introduce of centrifugal ring die pellet mill machine
The pellet machine is applied to the shapless material with low adhesiveness such as the rice husk, sunflower seed husk, peanut shell and other fruit shell branch, trunk, bark, crop straws, rubber, cement ,ash and other chemical materials. The pellet machine can be widely used in the feed plant, wood processing, fuel plant, fertilizer plant and chemical plant etc. It is the ideal pressing shaping equipment with low investment and high profit.
Process of rice husk Pellet processing line
Crushing system:
If the material too big, we need use crush the material into 3-5mm. It can crusher wood log, straw, bamboo, catton, wood branches, wood pallet etc which can usd for making pellet. The final material wil be usd for making pellet
Drying System
If the material to beprocessed is too wet, the line require the dryer to dry the material to below15%. We can use coal, pellet etc as fuel.
Pelleting System
It is main process for this line which produce the pellet,the pellet used for industry, boiler , factory etc. This machine can produce the pellet size with 4-12mm.
| Model | KL-900 | KL-750 | KL-550 | KL-450 |
| Main Power(KW) | 90 | 75 | 55 | 45 |
| Discharge Power(KW) | 1.5 | 1.5 | Main Ber Drive | Main Bear Drive |
| Electric Dry Oil Pump(KW) | 0.37 | 0.37 | 0.37 | 0.37 |
| Weight(T) | 6.8 | 5.6 | 3.6 | 2.9 |
| Speed of main bear(r/min) | 1450 | 1450 | 1450 | 1450 |
| Voltage(V/HZ) | optional | optional | optional | optional |
| Mould Diameter(mm) | 550 | 500 | 450 | 400 |
| Pellet Size(mm) | 4-12 | 4-12 | 4-12 | 4-12 |
| Temperature(degree) | 80-100 | 80-100 | 80-100 | 80-100 |
| Material Moisture(%) | 15-25 | 15-25 | 15-25 | 15-25 |
| Capacity(kg/h) | 1.2-1.5 | 1-1.2 | 0.8 | 0.6 |
Cooling System:
cool down the output pellets and remove some moisture of pellet
Sieving
remove the dusts and crushed pellets
Packing
package the pellets into bags of required sizes
Our Advantage of rice husk pellet processing line
• Feeding vertically and directly to pelletizing room.
• Die static, rollers rotating, materials centrifugal, evenly distributed around.
• Double-layer dies, up and down dual use, high capacity and energy saving.
• Ring die, vertical structure, conducive to the pelletizing room cooling.
• Independent output device, ensure formation rate of pellets.
• Independent lubrication system, bring precise & automatic lubrication to bearings.
• Feeding system is equipped with inverter which can bring stepless adjustable feeding speed.
