電圧: | 380ボルト | 原産地: | 中国(本土) | 銘柄: | gemco | モデル番号: | GMC-ZCP300D | 重量: | 6000キログラム | 力(W): | 41.25 | 保証: | 1年 | 条件: | 新しい | 認証: | ce | 次元(L*W*H): | 3500*1960*3500 | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | 色: | に従って作ることができるバイヤーの要求 | 容量: | 400キログラム/時間 | スペアパーツ: | 利用可能 | 操作ガイド: | 利用可能 | 後サービス: | 利用可能 |
包装
包装: | 簡易梱包 |
Due to the rapid increase in the need of energy source, more people start to become interested in small scale wood
pellet plant; they want to turn environmental wastes into pellets fuel and to be benefit from this business.
Our mobile pellet plant can meet above demands. It consists of hammer mill, screw conveyor, pellet mill,
cooler, vibrating screener, air driven conveying system, electric control cabinet, dust collector, and etc.
It can be moved near to raw material and reduce transportation cost for raw material. It's excellent to
be owned by a farm.

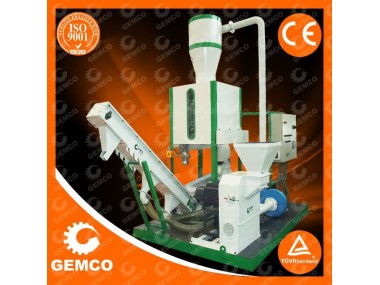

This small moveable complete pellet plant is specially designed for pelletizing production. The main equipments include hammer mill, cyclone separator, material
mixing & storage bin, screw feeder, ZLSP-300B R model pellet machine, water tank,
vibrating screen, bucket conveyor, foundation frame and electric cabinet. It can process
sawdust, twigs, stalks and straws into bio-fuel pellets, it is also capable to make animal
feed pellet from rice husks, peanut shells, forage and so on.
The range of diameter of pellets: 6~12, with pellet density of 1.1-1.3t/m3 and moisture
content of ≤8%; Overall size (L*W*H): 3500*1960*3500
This system is for manual operation situation, all machines should be started up
as the following steps:
air blower fan ---hammer mill ---mixing system --- scraper conveyor ---vibrating
screen ---pellet mill ---screw conveyor.
