• 木材のログ樹皮ドラムdebarker木材用ストリッピングマシン-木製のDebarker
    商品番号: 13044695
    仕入れる商品へのお問い合わせについて、
    お電話の場合:スタッフに商品番号をお伝えください。
    商品の詳細

    原産地: 中国(本土) 電圧: 3800 銘柄: hongxin
    モデル番号: 8000hx 重量: 2.3t 力(W): キロワット11-22
    認証: ce。 iso 提供される売り上げ後のサービス: 利用できるエンジニア機械類を海外に整備するため 木製の長さの範囲: 限られた
    条件: 新しい 木製の損失率: 2 皮率: 98
    次元(L*W*H): 18000*300*500 木製の直径の範囲: 500 紡錘の速度: 1500
    タイプ: 商業木材debarker/ログdebarker モーター: キロワット11 容量: 6- 8t/h
    長さを記録します: 3- 4m サイズ: 8*1.4*1.7m キーワード: 木材のログ樹皮ストリッピングマシン

    包装

    包装: 木製パッケージ木材ログ樹皮ドラムdebarker木材用ストリッピングマシン

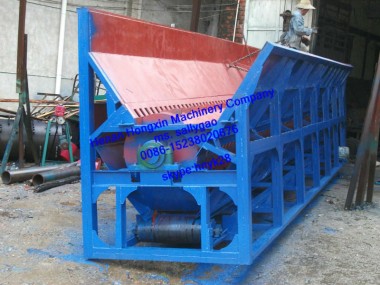

    Wood debark or wood peeling machine/tree/wood bark peeling machine/log debarker machine

    1>This machine is the rotor teeth with stripping produced a unique force, so that wood in the hopper tank plate section of a recurring cycle of movement, but also around its own axis to do wood turning motion segment and irregular beating. To this paragraph with wooden teeth, wood and wood paragraph paragraph paragraph wood and keep the friction between the storage tank, impact, compression, fast bark are separated, to achieve effective peeling effect.



    2>One end to put in and the other for outlet , it’s better than the rotary one  which have to stop the motor to take the peeled trees out



    3>Can suit for many kinds of different trees , especially for the bend one  have more high peeling rate than the traditional rotary type



    4>The machine is fixed when working , so the power consumption and the failure rate  is small and with low noise ,



    Wood barker is a new generation wood peeling equipment with high efficiency which was innovated by our factory on the basis of foreign advanced technology. It had single and double roller type according to different wood with different diameter. This machine adopts open groove peeling room, the wood come into the peeling room from one side and come out from the other size. So it is continuous working. It conquer the defect of rolling drum and improve capacity greatly. It is suitable for big diameter wood and large scale factory.

    Technical data:

    Model

    HX-8000

    HX-10000

    Motor

    11kw, 3 phases, 380v.50 hz

    15kw,3 phases,380v,50hz

    Capacity

    6-8 t/h

    10-12 t/h

    Barking rate

    > 90%

    >95 %

    Log length

    3-4 m

    5-6 m

    Log loss rate

    < 2%

    < 2%

    Log diameter

    No limitation

    No limitation

    Diamension

    8*1.4*1.7 m

    12*1.5*1.7 m
