| 適用: | 7785*2070*2920 | 原産地: | 中国(本土) | 銘柄: | マップ | モデル番号: | QLY7T | スパン: | 100 | 評価される積載量: | 7000キログラム | 認証: | ce | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | 評価される持ち上がる時: | 120kn * m | 特徴: | クレーン車 | 条件: | 新しい | 保証: | 1500作業時間 | 最高。 持ち上がる高さ: | 22メートル | 色: | イエロー | 証明書: | iso9001 | ブレーキ: | 真空ブースター |
包装
| 包装: | 1単位当たり40フィートコンテナ |

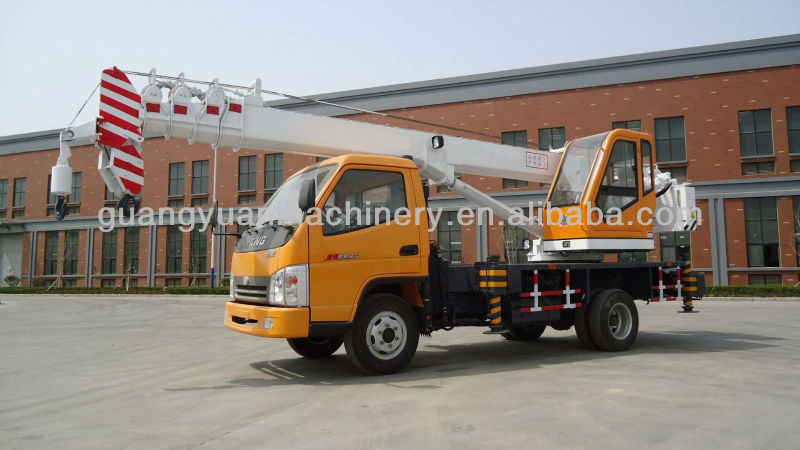

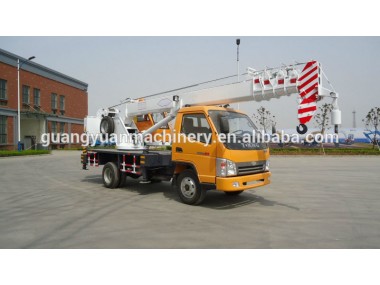

7 Ton Truck Crane Small Tyre Crane
Features:
Five five six-cylinder type hydraulic telescopic crane, rated lifting height of 24.5m, optional truss jib, the maximum lifting height of 28.5m, Φ1300mm high strength within the gnawing rotary support, 8T high strength worm gear slewing institutions, with a reliable buffer, self-locking function; planetary gear-type normally closed brake-type lifting winch, high lift-type disc valve motors to meet the high-speed fall and the major upgrade from the weight of demand; four central large diameter rotary the role of body rotation can be any angle; GB external 380V power electric power system, the role of alternative diesel engine hoist, greatly reducing the cost.
GB double-acting hydraulic cylinder construction machinery, high-strength alloy steel plate, the national standard of professionally produced heavy-duty chassis and outrigger structure, built-in push-pull legs H-pipe, to ensure that all crane operating conditions, stable and reliable operating performance. Technical data
Total mass kg | 7110 |
Overall dimension mm | 7785*2070*2920 |
Rated elevating capacity kg | 7000 |
Max. Lifting Height m | 24 |
Main hook single load kg | 1170 |
Main hook single elevating speed m/min | 50 |
Auxiliary hook single load kg | 500 |
Auxiliary hook single elevating speed m/min | 100 |
Engine model | FAW XINCHAI 490# (SD4BW60-30) |
Derailleur model | LG5-25 With high and low speed auxiliary box |
Tires | 7.00-16 with spare tires |
Braking form | Vacuum booster |
Steering form | The steering wheel circulation ball type |
Crane jib structure | Category five hexagon box-type, hydro cylinder telescopic boom |
Main Lifting Mechanism | Category two planet wheel with a brake inside |
Auxiliary Lifting Mechanism | Category one gear brake motor |
Swing Bearing | GB1000Tooth, material 50Mn intermediate frequency |
Vertical hydraulic leg | Double-acting engineering oil cylinder |
Horizontal hydraulic leg | Double-acting engineering oil cylinder |
Platform | Anti-skidding and big |
Protective Screening | Two-way |
Night light | 3 lamps control |
Dynamic Motor | GB 11KW-4 pole |
Crane Cab | Tailor-made |
The central axially symmetrical | Four oil ways |
Crane Start | Tailor-made |
Throttle | Hydraulic |
Warning Horn | Mono snail |
Pressure gage and switch | Shockproof component |
Power Takeoff | Driving indoor operation zip type |
Hydraulic Oil Tank | Turntable rearmounted, counter weight combined type, special four-layer filters |
