| 原産地: | 中国(本土) | 銘柄: | 蟻 | モデル番号: | ES12154 | タイプ: | エレベーターは分ける | 名前: | エレベーターの軽いカーテン | サイズ: | 12*17*2000mm | ビームは番号が付いている: | 154のビーム | ダイオード: | 32組 | 高さの検出: | 25-1860mm | 保護: | IP65 | スキャンの形態: | 1行毎 | 定常電圧: | 12V (8V~30V) | 現在の消費: | より少ないthan100mA | 証明書: | セリウム |
包装
| 包装: | 各セットのための堅い円形シリンダー。 1個のパッケージのための5セット。 1つのセットのサイズ: 2100*85*85mm。 1つのパッケージのサイズ: 2100*260*170. 1セットはパッケージとの3.00kgである。 |
仕様
Safety Edges for Doors
Light Beam Curtain
Elevator safety light curtain
about us
Ningbo ANT Electronic Co., Ltd. is a manufacturer specialized in the production of industrial remote control, crane load cell and elevator parts, such as elevator weighing load cells, Elevator light curtain, photoelectric sensors and other elevator sensors. The company is located in Jichang RD, Ningbo, China.

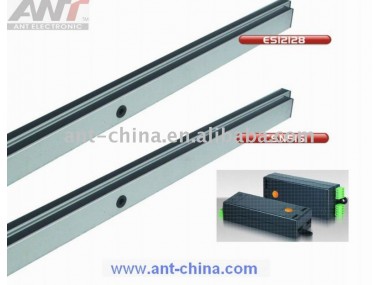

ANT Elevator light curtain system includes the transmitter, receiver, power supply box and cables. When the power is turned on, Elevator light curtain generates infrared screen between two doors. If any ray of infrared is blocked by any object or person, the doors stops closing immediately and open to protect people.
ANT Elevator light curtain, with 32 pairs of diodes, 154 beams, 25-1860 detecting height, scan the range line by line and detect 0~3.0m moving doors. ANT Elevator light curtain offer you the safest door protection for the elevators.
Features:
Model: ES12154
Items | Technical Parameters |
Beams Number | 154 beams (infrared) |
Sensors Number | 32 pairs (refer to pictures) |
Sensors Interval | 58.8 mm (refer to pictures) |
Beams Center Points Interval | 10.5mm/11.5mm (refer to pictures) |
Scanning Form | Line by line |
Response Time | 61msec(relating to detecting points of scanning cycle) |
Detecting Height | 25-1860mm |
Detecting Range | 0~5.0m moving door |
Light Immunity | 80,000lux(visible light) |
Allowable Deviation Angle | ≤10° |
Allowable Deviation Position | Vertical: ±10mm/7° |
Horizontal: ±5mm/5° | |
Protecting States | Cable fault |
Power fault | |
Current Consumption | Less than100mA |
Power Adapter | MODEL258 or 368 |
Protection Grade | IP65 standard |
Ambient Temp. | -20°C~ +70°C |
Storage Temperature | -40°C~ +80°C |
Other functions | One transmitter is shielded after 120s’ blocking |
Indicator | Power (green LED) |
System fault/beams blocked(orange LED) | |
Shell Material | Aluminum alloy surface of anodizing (black)or matt spray plastic(black) |
Shell Cover (light filter) | Embedded installation of infrared penetrating for blocking off non-infrared |
Authentication | CE(EMC) |
Working Voltage | 12V(8V~30V) |
Power supply | 220VAC or 24VDC |
about us
Feature:
Elevator light curtain
Material: Aluminum
Uses function: Elevator door detection
Price: please contact with us for special discount
Brand: ANT or according to customer requirements
Model: CSN515 or according to customer requirements
Date: 2-15 working days
Packing:
Hard round cylinder for each set; 5 sets for one package
One set size: 2100*85*85mm.
One package size: 2100*260*170.
One set is 3.00kg with package.
Or based customer requirement
Payment: L/C, T/T, Western unio
Minimum quantity: 1 set
Delivery time: within 2-15working days according to the order quantity
Top quality and competitive price
Supply capacity: 1000sets/week or based customer requirement
