| 原産地: | 中国(本土) | 銘柄: | shg | モデル番号: | TR1387 | trivision表示: | 広告表示 | 使用法: | 屋外広告 | 共通名: | 屋外trivisionまたはtrivision看板広告 | パッキング: | 織バッグまたは木製ボックス | 保証: | 10年時間 | モーター: | 日本パナソニックモータまたは国内モーター | 製品容量: | 5000平方メートルあたり月 | 画像: | を示すことができるよりも三画像 | 運転ベベルギヤ: | アメリカのデュポン | 証明書: | iso9000 |
包装
| 包装: | 織バッグ木箱/カートン |
China manufacturer three sided advertising outdoor billboards
Tri-vision, Tri-vision Billboard, Tri-vision billboard construction, Billboard structure, Prisma billboard, Advertising billboard, Advertisement billboard, Aluminium prism billboard, Advertising sign, two sided billboard, Rotating panel billboard, Three message billboard
Features of Tri-vision billboard:
1. Anti-rust, Anti-corrosion, Shock resistance, heat resisting
2. Water-proof & dust-proof, weather-proof, heat resisting, wind resistance of 10 class/level
3. Easy pictures changing
4. One-year guarantee
Advantage:
1. The main material is a kind of Specially made ECO-friendly aluminum alloy
2. The plastic parts are made of American “Dupont” engineering plastic(self-lubrication).
3.The double gear stepping wheel(gear) can be knocked off / detachable and adjusted easily.
Specifications:
Item | Specification |
Motor | 120W original Panasonic Motor,. |
Control System | GK100-B, full automatic controller |
Driving system | Double bevel gear driving system |
Power | 220V/50HZ, 0.54A |
Primary Material | Eco-friendly aluminum alloy, Anti-rust, Anti-corrosion, Shock resistance, Heat resisting |
Driving Component | PA66 Industrial Nylon and Cordura (America Dupont), superior mechanical strength, rigidity, tenacity, shock absorption and abrasive resistance. |
Triangular Prism | Wideness: 60-126mm, Thickness: 1.0-2.0mm |
Dimension | The height is suggested within 8m, no length limit. |
Image Flipping Time | 4-12 seconds ( for your choice) |
Image Stop Time | Freely set from 0-900 seconds. |
Flipping Performance | Opening, closing, wave type, from left to right, from right to left, flipping from part to part |
Wind Resistance | No less than 10 class with automatic wind resistance function, |
Life Span | Proper installation will ensure normal service life up to 10 years based on 16 running hours each day. |
Net Weight | 20kg/sqm |
Packing | Carton box/woven bag |
Application | Airport, Highways, City Centers, Commercial Centers, Outdoor Advertising. |

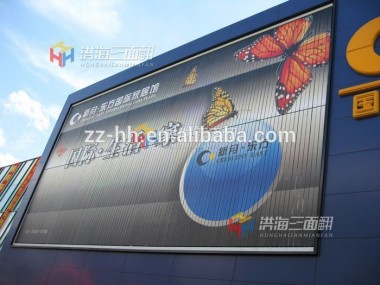

Project Case
