| 原産地: | 中国(本土) | 銘柄: | greentouch | モデル番号: | GT-SAW-22 | サイズ: | 10.4インチに42インチスタンド鋸タッチスクリーン | 入力方法: | 指、手袋をはめ指とタッチペン | タッチアクション力: | 30グラム- 60グラム | 厚さ: | 3ミリメートル/ 4ミリメートル/ 6ミリメートル | サポートタッチポイント: | シングルまたはダブルタッチ | 素材: | 純粋なガラス | 応答時間: | <10ミリ秒 | 指タッチ生活: | > 35,000,000回 | 保証: | 1年 | 認証: | ce、fcc、rohs |
包装
| 包装: | カートンボックス |
High quanlity SAW touch screen for advertising screen
SAW multi touch screen over view :
GreenTouch Standard SAW touch screen, adopts 4mm or 6mm optical glass with fantastic clarity. Transducers sink into glass beveled edge which can prevent transducers from crush dangerous and facilities assembly. It features unrivaled accuracy, reliability, sensitive and drift-free performance, can be touched by fingerer, glove, leather or stylus pen. With controller, it enable you to use both USB and RS232 interface, which enhance convenience and flexibility .
SAW multi touch screen advantages :
Superior image clarity with high light transmission
Sensitive and fast response
Durability, deep scratch resistance and abrasion
Highest resolution
Activated by finger, gloved hand, leather or soft stylus
More than 50 million touches in a single point
Dirt and splash sealed capability
SAW multi touch screen application :
Open frame
Self-service kiosks
Vending and ticket sales
Electronic catalogs
Gaming, lottery, and amusement
Public pay phones
Multimedia marketing
Banking/financial transactions
Industrial control rooms
Computer-based training
And more
SAW multi touch screen specification :
| Interface Type: | USB or RS232 |
| Resolution | 4096x4096 |
| Screen Ratio | 16:9 |
| Material | Glass |
| Certificates | CE, FCC, RoHS |
| Input method | Finger or touch pen |
| Position accuracy | 2~5mm |
| Operating Voltage | DC ≤10V |
| Operating current | 5~25mA |
| Response time | Less than 10ms |
| Touch action force | 30~80g |
| Operating temperature | -10°C~60°C |
| Storage temperature | -40°C~70°C |
| Surface hardness | ≥5H |
| Working environment | Under sunlight, indoor and outdoor |
| Transparency | ≥90% |
| Isolation resistance | ≥20MΩ DC 25V |
| The number of hits | ≥35,000,000/point |
| Warranty | 1 year |
| Support Systems | Windows 2000/Windows XP/Win 7/ Win 8/Windows NT/Linux/Mac |

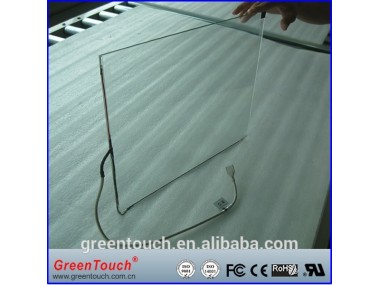

SAW multi touch screen pictures :
