| 金属のタイプ: | ステンレス | 全般的な用途: | 商業家具 | 原産地: | 中国(本土) | 銘柄: | defeng | モデル番号: | Dzs-3001e | 特定の使用: | 病院のテーブル | サイズ: | 20048x( 70- 95) cm | タイプ: | 病院の家具 | 材料: | 金属 | 折られる: | いいえ | パワー: | 油圧 | アプリケーション: | otのテーブル油圧 | 特徴: | 横向きに制御 |
包装
| 包装: | 各油圧otのテーブルで梱包されて1合板ボックス |

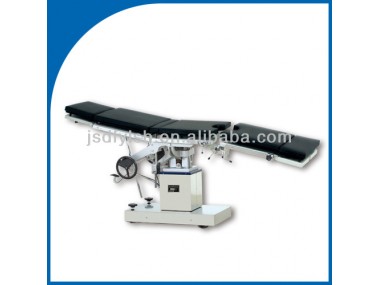

DZS-3001E Sideway control hydraulic OT table
DZS-3001 series sideway control hydraulic OT table features with integrated multi-function, they are suitable for surgical procedures of the head, neck, thorax, abdomen, perineum and extremities as well as for gynaecological, obstetrical, urological and otorhino-laryngological operations.
Features:
These tables are compactly designed and sturdily constructed and may be raised or lowered hydraulically by means of an oil pump.
imported Y type sealing ring with good sealing performance and is durable.
Rotary brake device which is easy for moving operating table.
All actions are controlled on both sides.
Main differences:
DZS-3001A, high quality cold-plate carbon steel coating base,
DZS-3001B, stainless steel base & upright column,
DZS-3001C, stainless steel base & upright column, separated legs.
DZS-3001D, stainless steel base & top & column, separated legs, double table tops.
DZS-3001E, stainless steel base & top & column, separated legs.
DZS-3001F, high quality cold-plate carbon steel coating base, separated legs.
Technical specification:
length:2100±50mm |
Width:480±20mm |
height:(750—950)mm±50mm |
forward: ≥30 backward: ≥20° |
leftward≥18 rightward≥18° |
Head board Fold upward≥45° Fold downward≥90° |
Back board Fold upward≥75° Fold downward≥18° |
Leg board Fold downward≥90° |
Waist board elevation ≥120mm |
Standard accessories:
Anesthetic Screen | 1 pc |
Shoulder Rest | 2 pcs |
Arm Support | 2 pcs |
Body Support, Large | 1 pc |
Body Support, Small | 1 pc |
Knee Crutch | 2 pcs |
Cushion | 1 pc |
