| 原産地: | 中国(本土) | 色を出すこと: | 白い | 銘柄: | 、。 d。 s | モデル番号: | Ads-284wf | 入力電圧(V): | dc12 | ランプの明るい効率(lm/w): | 40 | ランプの光束(lm): | 40 | 認証: | CE, RoHS | ランプボディ材料: | プラスチック | ランプ力(W): | 0.96 | 働く寿命(時間): | 50000 | 色温度(CCT): | 純粋な白 | 光源: | LED | IPの評価: | IP66 | 項目タイプ: | 広告はつく | 動作電圧: | dc12v | 消費作業: | 0.96ワット | ledのタイプ: | smd5050led | 寸法: | 53.8*33.8*5.6mm | 作業温度: | -40â-- 60â | ip等級: | ip66 | 認証: | Ce・rohs& sgs | ビーム角: | â¥140 | ビーム角( °): | 140 | 保証( 年): | 2 |
包装
| 包装: | カートン、 顧客の要求によって決定。 |

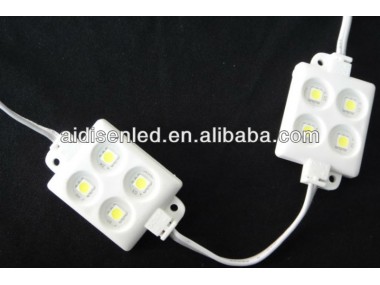

illumination LED smd Sign module
Epistar 5050SMD 3chips
Plastic Injection Shell
4 years experience factory on Led Sign module,Led dot Matrix Pixel light.
Cheap price, good quality on sale
Popular use for Signage, Advertising backlight
Advice each 30pcs multiple to the power cord, because of voltage drop. then the leds will be low brightness.
Specification:
Working voltage: DC12V
Working consumption: 0.96w
Working temperature: - 40 °C- - 60 °C
Dimension: 53.8*33.8*5.6mm
Led type: SMD5050RGBLED
LED QTY: 4pcs
Lifespan: MTBF≥50000h
Viewing angle: ≥140
Color | Wavelength/color temperature(nm/k) |
Red | 619~635 |
Green | 512~528 |
blue | 463~475 |
Application:
1. popular used for subway high power billboard
2. Market, store, shop Logo, sign for illumination
3. Backlight lighting for Channel letter
4. KTV, Bar, Disco wall backlight lighting, billboard.
Instruction:
1. This product is applied to 7~15cm thickness, LOGO Plastic Light Box.
2. SMD LED light with large and uniform emitting angle, no shadow, low thermal resistance, low brightness declines.
3. This module could be linked up to 60 pcs modules, more than 60pcs is strictly prohibited.
4. The diameter of the power cord should be based on the actual maximum current, the product power, cabling length (recommended no more than 6 meters ), and the voltage of the transmission line.
5. Please connect wires following the positive and negative markings on the circuit board.
