| 原産地: | 中国(本土) | 銘柄: | brightstar | モデル番号: | MSD-DIM-24V-30W | コントロールsingnal: | 0-10ボルト | 出力電力: | 30ワット | 入力電圧: | ac90-130v/ac170-250v | 出力電圧: | 24ボルト | 出力電流: | 0-1250mA | 外形寸法: | 257 * 29*20 (mm) | 重量: | 340グラム/ピース | eff: | > 83% |
包装
| 包装: | は一枚を詰めた白いボックスにと30個1カートンで |

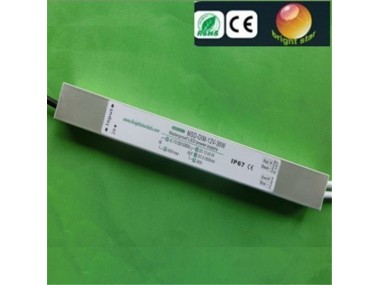

Constant voltage dimmable 0-10V dc power supply
12V version
| Item No | MSD-DIM-12V-30W |
| Control singnal | 0-10V |
| Output power | 30W |
| Input voltage | AC90-130V/AC170-250V |
| Output voltage | 12V |
| Output current | 0-2500mA |
| Dimension | 257*29*20(MM) |
| Weight | 340g/pc |
| EFF | >83% |
24V version
| Item No | MSD-DIM-24V-30W |
| Control singnal | 0-10V |
| Output power | 30W |
| Input voltage | AC90-130V/AC170-250V |
| Output voltage | 24V |
| Output current | 0-1250mA |
| Dimension | 257*29*20(MM) |
| Weight | 340g/pc |
| EFF | >83% |

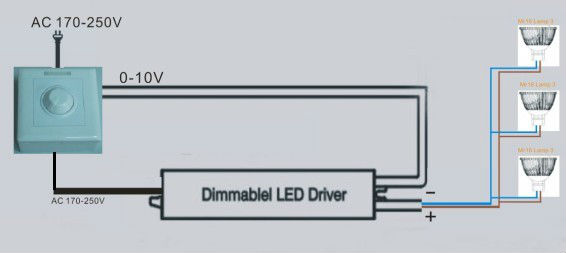

0-10V is one of the earlist and simplest electronic lighting control singnaling system,thecontrol singnal is a DC voltage that varies between zero and ten volts.The controlled lightingshould scale its output so that at 10V,the controlled light should be 100% of it's potential output,and at 0V it should at the lowest possible dimming level.
