| 原産地: | 中国(本土) | 銘柄: | brightstar | モデル番号: | MSD-CC-100W | pf: | > 0.98 | コンデンサ: | ルビー | 効率: | > 90% | 分離: | はい | 入力電圧( v): | 90-260 ボルト/50/60 ｈｚ | 出力電圧( v): | 20-60 ボルト の ため の選択 | 電流( a): | 3a | 認証: | ce/rohs | 防水: | ip68 | カスタマイズ さ れ た: | はい |
包装
| 包装: | によって詰め小さな ボックス それぞれ について それぞれ最初、 その後カートン を詰め た 。 |

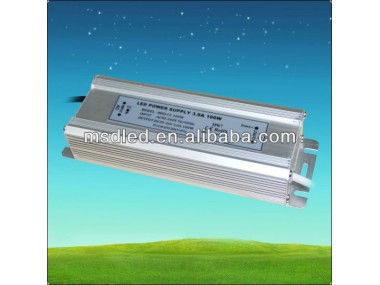

100W 3A waterproof 100W AC DC LED converter with CE approrved
Features:
- Adopting PWM switching technology design,our LED switching power supply is featured with stability and high efficiency
- More than 24hours aging time with 100% load
- .Efficiency>85%,temperature rise≤25°C
- Short circuit& Over voltage and Over load protection

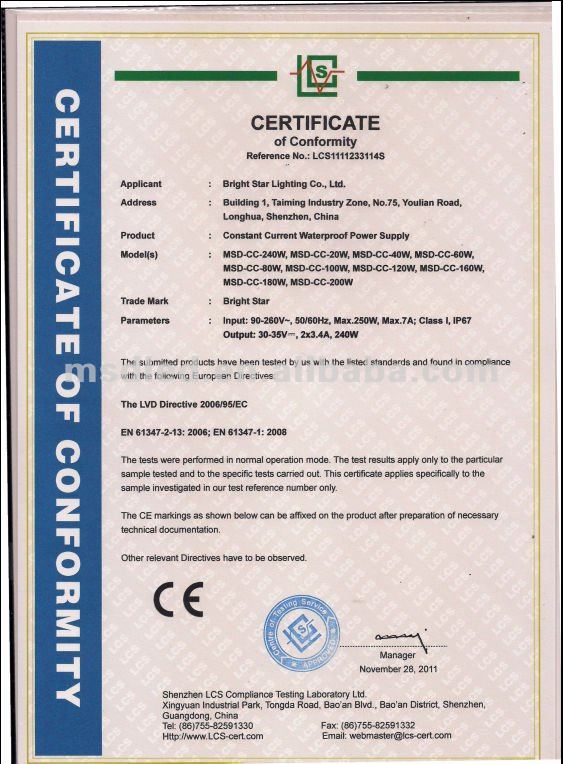

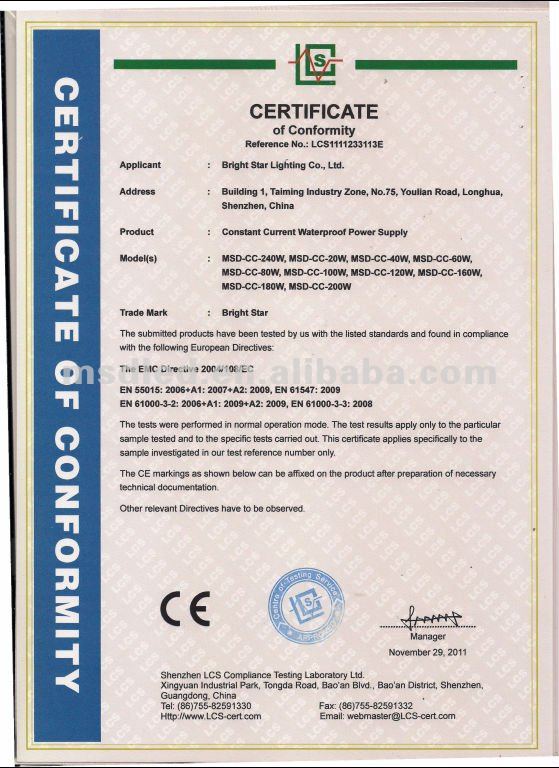

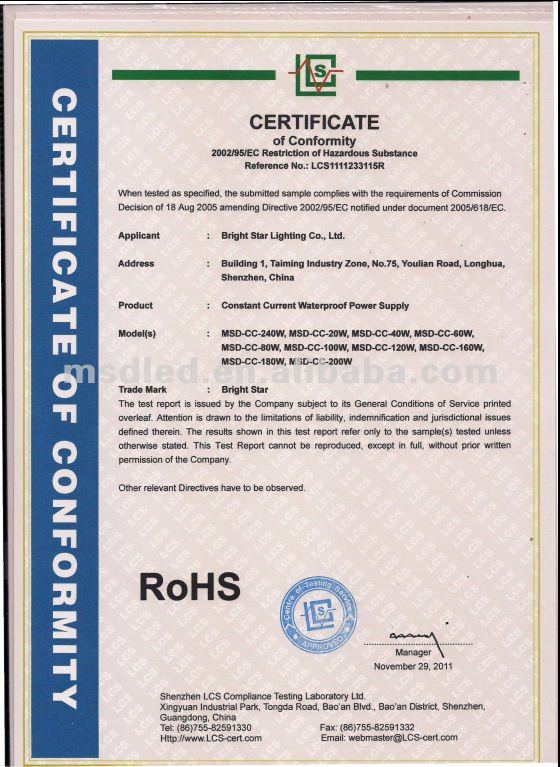

- Have both constant current and constant voltage series suitable for input voltage of 90~130VAC,170~250V/AC,Compliant with CE(LVD+EMC)/ROHS/IP67 certifications standard
- Customize is available
Parameters :
| parameter | minimum | typical | maximum | unit |
| input current | -- | -- | 1200 | mA |
| input voltage | 100 | 220 | 265 | VAC |
| Input frequency | 47 | 50/60 | 63 | HZ |
| PF | 0.95 | 0.98 | 0.99 | PF |
| No-load power | -- | 0.5 | 0.6 | W |
| output current | 2980 | 3000 | 3020 | MA |
| output voltage(no-load) | 37 | 38 | 40 | V |
| output voltage(load) | 30 | 36 | 36 | V |
| output power | 72.8 | 100 | 103.6 | W |
| Total Efficiency | 87 | 89 | -- | % |
| working life | 30000 | -- | -- | hour |
| harmonic | -- | -- | 10 | % |
| Over temperature protection | yes | yes | yes | -- |
| output short circuit protection | yes | yes | yes | -- |
| Environment operation temperature | 40 | -- | 50 | -- |
| storage temperature | 40 | -- | 70 | -- |
| Insulating strength(AC to DC) | 3750(need toEncapsulating compound ) | -- | -- | VAC |
| Insulating strength (AC to shell to GND) | 3750(need toEncapsulating compound ) | -- | -- | VAC |
| size | L180*W70*H40 |
Drawing Picture:
