| 原産地: | 中国(本土) | 銘柄: | Deplux | モデル番号: | ccfl | 形: | まっすぐに | 主義: | 冷たい陰極 | けい光ランプ: | 冷たい陰極のけい光ランプ |
包装
| 包装: | 箱 |

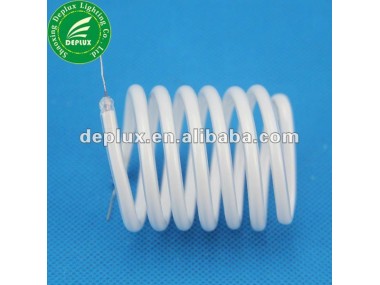

CCFL energy saving lamps cold cathode energy saving lamps
1.It has high brilliance and efficiency,by using quality tricolor rluorescent materials,the color can be setrandomly and can maintain lumen longer;
2. Durability(Under the rated current,the working hours stands between 35000h and 50000h);
3. High color rendering,Pleasant and xomfortable lighting;
4. Lower energy consumption and heat produced;
5. Shock-proof;
6.Stands over200,000 times switch on and off;
7. Tube diameter from 1.8mm to 7.0mm for background lighting are available;
Dia(mm)OD | Length(mm)+-2 | Voltage | Current | Power(W) | Ave Brightness(cd/m2) | Lifespan |
2.0 | 100-150 | 305 | 5.0 | 1.55 | 35000 | 50000 |
| 151-200 | 510 | 5.0 | 2.50 | 35000 | 50000 |
| 201-300 | 675 | 5.0 | 3.40 | 35000 | 50000 |
| 301-400 | 845 | 5.0 | 4.25 | 35000 | 50000 |
| 401-500 | 1015 | 5.0 | 5.00 | 35000 | 50000 |
2.6 | 100-199 | 270 | 5.0 | 1.34 | 28000 | 50000 |
| 200-299 | 450 | 5.0 | 2.25 | 28000 | 50000 |
| 300-399 | 630 | 5.0 | 3.15 | 28000 | 50000 |
| 400-499 | 805 | 5.0 | 4.02 | 28000 | 50000 |
| 500-599 | 985 | 5.0 | 4.90 | 28000 | 50000 |
| 600-699 | 1005 | 5.0 | 4.50 | 28000 | 50000 |
| 700 | 1205 | 5.0 | 5.80 | 28000 | 50000 |
3.0 | 200-299 | 445 | 5.0 | 2.25 | 25000 | 50000 |
| 300-399 | 625 | 5.0 | 3.15 | 25000 | 50000 |
| 400-499 | 805 | 5.0 | 4.05 | 25000 | 50000 |
| 500-599 | 975 | 5.0 | 4.90 | 25000 | 50000 |
| 600-699 | 1005 | 5.0 | 5.00 | 25000 | 50000 |
| 700-799 | 1100 | 5.0 | 5.00 | 25000 | 50000 |
| 800 | 1205 | 5.0 | 6.00 | 25000 | 50000 |
