| 原産地: | 中国(本土) | 銘柄: | OEM | モデル番号: | T8 U字型曲がった管 | 形: | U | 主義: | Electrodeless | T8ランプ: | Uは管を曲げた |
包装
| 包装: | buyerの選択として中立パッケージまたは |

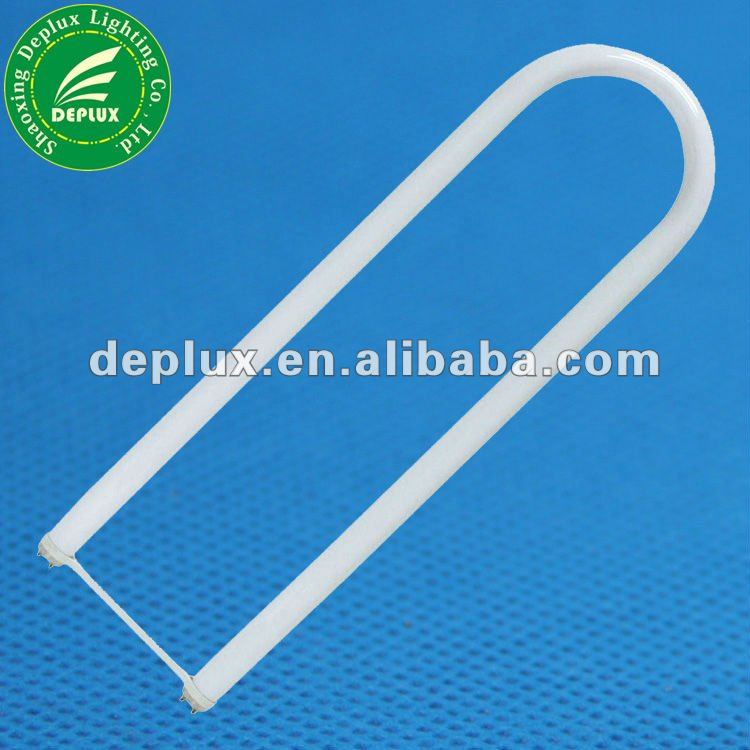

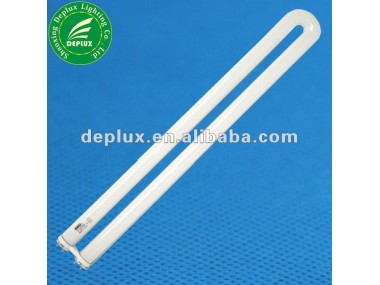

U-bend lamp T8 G13 tube diameter:26mm
1.2300lm 8000hrs G13
2.Available in 2700K/4000K/6500K
U-bend lamp
They are used for general lighting and recommended for office,factory,hospital,shopping mall and residence etc.
Specification
Input Line Voltage 120VAC
Input Line Frequency 50/60HZ
Min Starting Temperature -0F
Max Operating Temperature 100F
Color Rendering Index 80
| Type | Lamp Dimension (mm) | Case Qty. (pcs) | Carton Size (cm) | G.W. (kg) | N.W. (kg) | |||
| A max | C max | D max | D1 max | |||||
| FB16T8/1-5/8/US | 269 | 276 | 41.3 | 26 | 20 | 32.0 x 30.0 x 19.0 | 5.0 | 2.5 |
| FB24T8/1-5/8/US | 421 | 428 | 41.3 | 26 | 20 | 45.5 x 32.0 x 19.0 | 6.5 | 3.5 |
| FB31T8/1-5/8/US | 574 | 581 | 41.3 | 26 | 20 | 60.5 x 32.0 x 19.0 | 8.0 | 4.5 |
| Type | Wattage (W) | Supply Voltage (V) | Lamp Voltage (V) | Lamp Current (A) | Lamp Cap | Lumen Output (LM) | Colour Temperature (K) | CRI (Ra) | Life (hrs) |
| FB16T8/1-5/8/US | 16 | 120 | 65 | 0.265 | G13 | 1125 | 2700 / 4000 / 6500 | 82 | 12000 |
| FB24T8/1-5/8/US | 24 | 120 | 99 | 0.265 | G13 | 1925 | 2700 / 4000 / 6500 | 82 | 12000 |
| FB31T8/1-5/8/US | 31 | 120 | 135 | 0.265 | G13 | 2725 | 2700 / 4000 / 6500 | 82 | 12000 |
