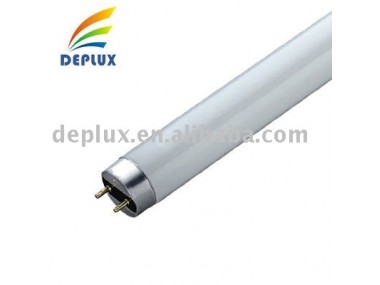

| 原産地: | 中国(本土) | 銘柄: | Depluxか顧客の設計 | モデル番号: | 25パックの日光の蛍光灯6のフィートT8 (26mm dia)の日光70W | 形: | まっすぐに | 主義: | CFL | けい光ランプ: | T8 18W 30W 36W |
包装
| 包装: | 1pc/sleeve、25pcs/carton。 |
Features:
1-use triphosphor fluorescent powder, good lighting effect, small color difference.CRI up to above 82, the illuminated object looks more true and eye will feel more comfortable.
2-Daylight, Coolwhite and warmwhite are optional for different requirements on color temperature.
3-Advanced water-powder coating technique, which increases efficiency of light and reduces light attenuation
4-Additional cathode protection ring at two ends of the tube prevents the tube end from black.
5-use triplewire filament to ensure sufficient electron powder and prolong service life.
6-special tube dia. of 25.5mm can be quickly start under low temperature
7-High lumen retaining rate and small light attenuation
Watts(W) | A(mm) | B(mm)max | B(mm)min | C(mm) | Dia.(mm) | Pct/Ctn | Meas.(cm) | G.W.(kgs) | N.W.(kgs) |
10W | 331.3 | 338.4 | 335.8 | 345.5 | 26 | 200 | 57.5X36.5X30 | 14 | 12 |
15W | 437.4 | 444.5 | 442.1 | 451.6 | 26 | 100 | 47X30.5X31 | 8.5 | 7.3 |
18W | 589.8 | 596.9 | 594.5 | 604.0 | 26 | 100 | 62.5X30.5X31 | 12.5 | 10 |
30W | 894.6 | 901.7 | 899.3 | 908.8 | 26 | 25 | 92.5X16X16.5 | 4.5 | 3.7 |
36W | 1199.4 | 1206.5 | 1204.1 | 1213.6 | 26 | 25 | 123X16X16.5 | 5.6 | 4.6 |
58W | 1500.0 | 1507.1 | 1504.7 | 1514.2 | 26 | 25 | 153X16X16.5 | 7 | 5.5 |
Type | Watts(W) | Current(A) | Min(V) | Voltage rating(V) | Max(V) | Luminous(Lm) | Lifespan(hrs) | Socket |
10W/DL/CW/WW | 10W | 0.220 | 44 | 52 | 60 | 350/380/380 | 8000 | G13 |
15W/DL/CW/WW | 15W | 0.310 | 46 | 55 | 64 | 900/970/970 | 8000 | G13 |
18W/DL/CW/WW | 18W | 0.370 | 50 | 57 | 64 | 1450/1480/1560 | 8000 | G13 |
30W/DL/CW/WW | 30W | 0.365 | 86 | 96 | 106 | 2300/2400/2540 | 8000 | G13 |
36W/DL/CW/WW | 36W | 0.430 | 93 | 103 | 113 | 3200/3350/3450 | 8000 | G13 |
58W/DL/CW/WW | 58W | 0.670 | 100 | 110 | 120 | 5000/5300/5400 | 8000 | G13 |
