| 原産地: | 中国(本土) | 銘柄: | UHI | モデル番号: | J78/118/125/189/254mm | 材料: | ガラス | 認証: | CE | 指定: | R7S | 色: | 白い |
包装
| 包装: | 標準的な輸出パッキング |

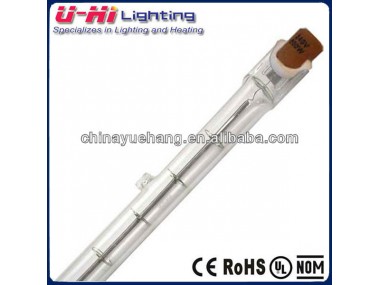

J Halogen Lamp for Video 125mm 1000W
J Standard Double-Ended Linear Halogen Lamps
In-line protection fuses are recommended for 220-240V circuits according to
EN60357(BS1075) for following wattages : 60W to 300W - 2A
500W - 4A
750W & 1000W - 6.3A
1500W & 2000W - 10A
Average life 2000 hours
Colour temperature 2900K, lamp base is R7S
Protective covers are required for lighting fixtures
Lamp Code | Voltage (V) | Wattage (W) | Filament support | Diameter D(mm) | Length L1(mm) | Lumen (lm) |
|
J-78/60W | 120/130/230/240 | 60 | Re-inforced | 8 | 80 | 840 | D |
J-78/75W | 120/130/230/240 | 75 | Re-inforced | 8 | 80 | 1050 | D |
J-78/100W | 120/130/230/240 | 100 | Re-inforced | 8 | 80 | 1650 | D |
J-78/150W | 120/130/230/240 | 150 | Re-inforced | 8 | 80 | 2600 | D |
J-78/200W | 120/130/230/240 | 200 | Re-inforced | 8 | 80 | 3200 | D |
J-78/250W | 120/130/230/240 | 250 | Re-inforced | 8 | 80 | 4000 | D |
J-118/100W | 120/130/230/240 | 100 | Re-inforced | 8 | 118 | 1650 | D |
J-118/150W | 120/130/230/240 | 150 | Re-inforced | 8 | 118 | 2600 | D |
J-118/200W | 120/130/230/240 | 200 | standard | 8 | 118 | 3200 | D |
J-118/300W | 120/130/230/240 | 300 | standard | 8 | 118 | 5000 | D |
J-118/500W | 120/130/230/240 | 500 | standard | 10 | 118 | 9500 | D |
J-189/750W | 230/240 | 750 | standard | 10 | 189 | 16500 | D |
J-189/1000W | 230/240 | 1000 | standard | 10 | 189 | 22000 | D |
J-254/1000W | 230/240 | 1000 | standard | 10 | 254 | 22000 | D |
J-254/1500W | 230/240 | 1500 | standard | 10 | 254 | 33000 | D |
J-333/2000W | 230/240 | 2000 | standard | 10 | 333 | 44000 | D |
J-333/2000W | 230/240 | 2000 | standard | 10 | 333 | 44000 | D |
