• ledサインモジュールsmd5050広告のための照明、 12v-広告はつく
    商品番号: 11766086
    仕入れる商品へのお問い合わせについて、
    お電話の場合:スタッフに商品番号をお伝えください。
    商品の詳細

    原産地: 中国(本土) 色を出すこと: 白い 銘柄: a.d.s
    モデル番号: ADS-503A 入力電圧(V): dc12 ランプの明るい効率(lm/w): 38
    ランプの光束(lm): 38 認証: RoHS, CE ランプボディ材料: プラスチック
    ランプ力(W): 0.72 働く寿命(時間): 50000 働く温度(℃): -40 - 60
    色温度(CCT): 涼しい白 光源: LED IPの評価: IP66
    項目タイプ: 広告はつく 電圧: dc12v 電源: 0.72ワット
    外形寸法: 67.5*20*5.8ミリメートル 作業温度: -40℃-60℃ ipグレード: ip66
    ドライブ電流あたりピース: 60ma ledタイプ: smd5050led ビーム角: 以上140度
    認証: ce & rohs & sgs ビーム角(°): 140

    包装

    包装: 文字列ごとに20個、 で100個1アンチ- バッグ、 カートンで梱包後、。 ラベル付き。 顧客の要求としても梱包でき

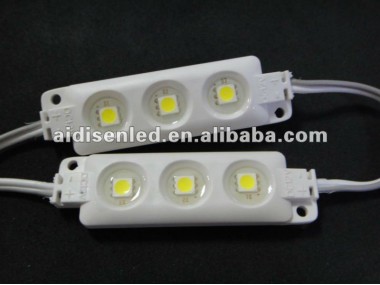

       12V Led module 5050





    SMD5050 Injection module



    Popular use for Signage, Advertising backlight, sign board



    Advice each 30pcs need to multiple to Power cord, because of the voltage drop. or the







    ADS-503A





    Parameter

    Specification

    LED type

    5050 SMD

    LED quantity

    3 pcs

    Current(MA)

    60MA

    Voltage

    DC12V

    Power Consumption

    0.72W/pc

    Dimension

    67.5*20*5.8mm

    Color

    Red/Yellow/Blue/Green/White

    Waterproof

    Waterproof

    IP Grade

    IP 66

    Working temperature

    -40°C~60°C

    Viewing angle

    ≥140°

    Lifespan

    MTBF≥50000h







    Color

    Wavelength/color temperature

    Red

    619~635    nm

    Green

    512~528    nm

    Blue

    463~675    nm

    Yellow

    584~595    nm

    White

    ≥6500≤   k



    Applications:







    1) Channel Letters Backlighting, indoor and outdoor




    2) Advertisement Signs Backlighting




    3) Advertisement Light Boxes Backlighting




    4)Logo backlighting




    5) Advertisement billboards backlighting




    6)Indoor and outdoor illumination









    Instructions:





    1)This product applies in 7 ~ 15 cm thickness, medium and large LOGO Plastic Light Box.



    2)SMD LED light with large and uniform emitting angle, no shadow, low thermal resistance, low brightness degradation.



    3) This module could be linked up to 100pcs modules, more than 100pcs is strictly prohibited.



    4)The diameter of the power cord should be based on the actual maximum current ,the product power, cable length (recommended no more than 6 meters), and the voltage of transmission line .



    5) Please connect wires following positive and negative markings on the circuit board.
