| 原産地: | 中国(本土) | 色を出すこと: | 白い | 銘柄: | 広告 | モデル番号: | Ads-75123zs | CRI (Ra>): | 85 | 入力電圧(V): | 12 | ランプの光束(lm): | 139 | 認証: | RoHS, CE | ランプボディ材料: | プラスチック | ランプ力(W): | 1 | 働く寿命(時間): | 50000 | 色温度(CCT): | 純粋な白 | 光源: | LED | IPの評価: | IP68 | 項目タイプ: | 広告はつく | 製品: | インジェクションledモジュール | 電圧: | dc12v | ledのタイプ: | ledsmd5630 | led電源: | 1w | 色の範囲: | 白、 黄色、 緑、 赤、 青 | 認証取得: | ce・rohs指令 | 製品名: | 屋外用ledモジュール | サイズ: | 79*17*7mm | usege: | チャンネル文字広告、 ロゴ | 保証: | 保証2年 |
包装
| 包装: | 20pcs/文字列、 100pcs/bag、 2000pcs/カートン、 カートンサイズは46.5*26*46cm、 18キロ約/カートン。 |

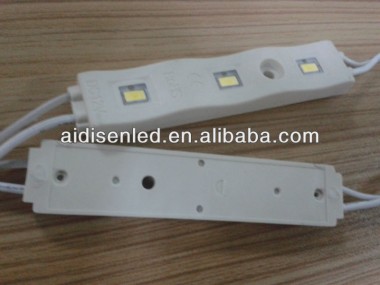

Aidisen waterproof 5630 led lighting module for black signs
| Specification: | |||||||
| Items | Color | LED Qty | Lumen(LM) | Wavelength Scope(nm/K) | LEDs | PCB dimension | unit |
| ADS-75123-5630 | Red | 3 | 42 | 619-635 | 5630 SMD LED | 75*15*1.6 | 20PCS/chain |
| Green | 3 | 96 | 512-528 | ||||
| Blue | 3 | 27 | 463-475 | ||||
| Yellow | 3 | 21 | 584-595 | ||||
| White | 3 | 139 | 6000-7000 | ||||
| ADS-75123-5630 module parameter: | |||||||
| Items | Parameter | Units | |||||
| Voltage | 12 | V | |||||
| Power | 1 | W | |||||
| Temperature | -40 ~60 | °C | |||||
| IP grage | IP68 | ||||||
| demension: | 79*17*7 | mm | |||||
| Lifespan | >50000 | h | |||||
| View angle | >140 | °C | |||||
| Product Feature: | |||||||
| 1, ADS-75123SZ series module used plastic shell, PCB plate,grey&white wire(thermostability,cold-resistant,resistant to UV) | |||||||
| 2, With 3pcs 5630 SMD LED,with large abd uniform angle, no shadow,low thermal resistance,low brightness declines, | |||||||
| 3, work effciently under the harsh environment.Energy saving,environment-friendly,long life span for50,000hrs | |||||||
| 4, Suitable for channel letters and light boxes backlighting etc. | |||||||
| 5, This module can be linked uo to 20pcs at max, more than 20pcs is strictly prohibited, | |||||||
| 6, The diameter of power cord should be based on the actual maximum current, the product power, | |||||||
| cable length(recommend no more than 6meters)and the voltage of transmission line. |
Trade terms:
1.Payment methods:T/T,Western unio
100% payment if the total amount less than 5000USD
30% deposit and 70% balance before shipment if the total amount is more than 5000USD
2.Lead time:3-5 working days,subject to the order quantity
3.Delivery ways:DHL,EMS,UPS,FedEx door to door service,by sea, air and etc
4.MOQ:small order is available
Application
1.This product is applied in LOGO, advertisement billboard, exposed luminous characters.
2. Channel Letters Back lighting;
3. Backlight of signage, channel letter, signs, light box
4. Advertisement signs Back lighting
5. Advertisement Light Boxes Back lighting
6. Decoration lights for bar, pub, club, disco
7. Billboard Back lighting;
