| 原産地: | 中国(本土) | 色を出すこと: | 白い | 銘柄: | ads | モデル番号: | ADS-75123 | CRI (Ra>): | 85 | 入力電圧(V): | 12 | ランプの光束(lm): | 60 | 認証: | RoHS, CE | ランプボディ材料: | プラスチック | ランプ力(W): | 0.72 | 働く寿命(時間): | 50000 | 働く温度(℃): | -40 - 60 | 色温度(CCT): | 純粋な白 | 光源: | LED | IPの評価: | IP65 | 項目タイプ: | 広告はつく | 製品: | 5050 ledバックライトモジュール | 電圧: | dc12v | 電源: | 0.72ワット | 電流: | 60ミリアンペア | ledタイプ: | 3ピース5050 smd | サイズ: | 97.5*14*8ミリメートル | usege: | ad文字、ロゴ、看板 | 配達時間: | 5-7日支払を受け取った後 | 保証: | 2年 | シェル: | 透明、ミルキー黄色シェル |
包装
| 包装: | 20pcs/チェーン、 と2000100pcs/bagpcs/カートン。 カートンサイズは46.5*26*46cm、 についてもできkg/カートン。 顧客の要求に応じてすることができ梱包について。 |

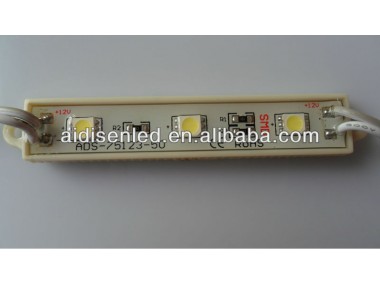

high power 5050 smd led module for bar signs and advertising
Specification
| Items | Color | LED Qty | Lumen(LM) | Wavelength Scope(nm/K) | LEDs | PCB dimension | unit |
| ADS-75123RF-50 | Red | 3 | 18 | 619-635K | 5050 SMD LED | 75*12*1.2 | 20PCS/chain |
| ADS-75123GF-50 | Green | 3 | 36 | 512-528K | |||
| ADS-75123BF-50 | Blue | 3 | 15 | 463-475K | |||
| ADS-75123YF-50 | yellow | 3 | 15 | 584-595K | |||
| ADS-75123WWF-50 | warm white | 3 | 60 | 3000-3500K | |||
| ADS-75123WF-50 | white | 3 | 60 | 6000-7000K | |||
| ADS-75123CF-50 | cold white | 3 | 60 | 20000-25000K | |||
| ADS-75123 module parameter: | |||||||
| Items | Parameter | Units | |||||
| Voltage | DC12 | V | |||||
| Power | 0.72 | W | |||||
| Temperature | -40-60 | °C | |||||
| IP grage | IP66 | ||||||
| demension: | 97.5*14*8 | mm | |||||
| Lifespan | ≥50000 | h | |||||
| View angle | ≥140 | °C | |||||
Introduction:
| 1, ADS-75123 series module used plastic shell, PCB plate,grey&white wire(thermostability,cold-resistant,resistant to UV) | |||||||
| 2, With 3pcs 5050 SMD LED,with large abd uniform angle, no shadow,low thermal resistance,low brightness declines, | |||||||
| 3, work effciently under the harsh environment.Energy saving,environment-friendly,long life span for50,000hrs | |||||||
| 4, Suitable for channel letters backlighting and lightbox and so on | |||||||
| 5, This module can be linked up to 20pcs at max, more than 20pcs is strictly prohibited, | |||||||
| 6, The diameter of power cord should be based on the actual maximum current, the product power, | |||||||
| cable length(recommend no more than 6meters)and the voltage of transmission line. |
Feature
01. Ideal replacement of neon light and other traditional advertising lighting.
02. Low power consumption, 80% energy saving
03. High brightness, full range colors are available
04. Long lifespan: 50, 000hours at least
05. Maintenance free, low cost to use
06. Low voltage with 12V, be safe to use
07. Easy installation, be convenient to use in all display situation
Application
1. Channel Letters Back lighting;
2. Backlight of signage, channel letter, signs, light box
3. Advertisement signs Back lighting
4. Advertisement Light Boxes Back lighting
5. Decoration lights for bar, pub, club, disco
Trade Terms:
1.Payment: T/T 100% in advance T/T,Paypal,Western unio
2.Production lead time 20000pcs: 3-5 days, 20000~100000pcs:5~7days, above 100000 pcs :10 days.
3.Sample can be delivered in 3days
4.Shipping freight are quoted under your requests
5.Shipping port: Shenzhen, Mainland China
6.MOQ: 100 pcs
about ADS
1. Shenzhen Aidisen Optoelectronic Co., Ltd is a well-known professional LED lighting company, with professional R&D, producing and marketing departments as one.
2. We specialize in LED back lighting , LED commercial lighting and LED landscape lighting products, Strong credibility, Top service, Good quality( CE & RoHS certifications),SGS report and Patent products
3.Our professional design team specializes in Lighting project animation and program solutions
4. We attend in various LED professional Expo, showing customers our products and service. the successful application cases of ADS are all over the countries and cities which establish the good reputation
