| 原産地: | 中国(本土) | 色を出すこと: | 白い | 銘柄: | a.d.s | モデル番号: | ADS-503A | 入力電圧(V): | dc12 | ランプの明るい効率(lm/w): | 38 | ランプの光束(lm): | 38 | 認証: | RoHS, CE | ランプボディ材料: | プラスチック | ランプ力(W): | 0.72 | 働く寿命(時間): | 50000 | 働く温度(℃): | -40 - 60 | 色温度(CCT): | 涼しい白 | 光源: | LED | IPの評価: | IP66 | 項目タイプ: | 広告はつく | 電圧: | dc12v | 電源: | 0.72ワット | ドライブ電流あたりピース: | 60ma | 外形寸法: | 67.5*20*5.8ミリメートル | ledタイプ: | smd5050led | 作業温度: | -40℃-60℃ | ipグレード: | ip66 | ビーム角: | 以上140度 | 認証: | ce & rohs & sgs | ビーム角(°): | 140 |
包装
| 包装: | 文字列ごとに20個、 で100個1アンチ- バッグ、 カートンで梱包後、。 ラベル付き。 顧客の要求としても梱包でき |
High brightness 5050 Led module light
SMD5050 Injection module
Popular use for Signage, Advertising backlight, sign board
Advice each 30pcs need to multiple to Power cord, because of the voltage drop. or the
ADS-503A
Parameter | Specification |
LED type | 5050 SMD |
LED quantity | 3 pcs |
Current(MA) | 60MA |
Voltage | DC12V |
Power Consumption | 0.72W/pc |
Dimension | 67.5*20*5.8mm |
Color | Red/Yellow/Blue/Green/White |
Waterproof | Waterproof |
IP Grade | IP 66 |
Working temperature | -40°C~60°C |
Viewing angle | ≥140° |
Lifespan | MTBF≥50000h |
Color | Wavelength/color temperature |
Red | 619~635 nm |
Green | 512~528 nm |
Blue | 463~675 nm |
Yellow | 584~595 nm |
White | ≥6500≤ k |
Applications:

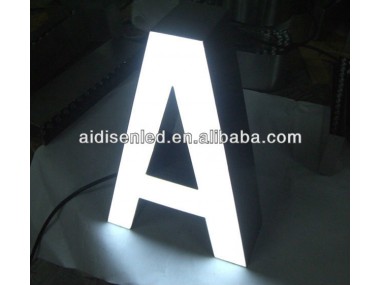

1) Channel Letters Backlighting, indoor and outdoor
2) Advertisement Signs Backlighting
3) Advertisement Light Boxes Backlighting
4)Logo backlighting
5) Advertisement billboards backlighting
6)Indoor and outdoor illumination
Instructions:
1)This product applies in 7 ~ 15 cm thickness, medium and large LOGO Plastic Light Box.
2)SMD LED light with large and uniform emitting angle, no shadow, low thermal resistance, low brightness degradation.
3) This module could be linked up to 100pcs modules, more than 100pcs is strictly prohibited.
4)The diameter of the power cord should be based on the actual maximum current ,the product power, cable length (recommended no more than 6 meters), and the voltage of transmission line .
5) Please connect wires following positive and negative markings on the circuit board.
