| 原産地: | 中国(本土) | LEDの光源: | bridgeluxled | 銘柄: | rx | モデル番号: | Rx-fgd240cw-0 | CRI (Ra>): | 0.75 | 入力電圧(V): | 90-240 | ランプの明るい効率(lm/w): | 100 | 認証: | CE, RoHS | ランプの光束(lm): | 21600 | ランプボディ材料: | アルミ合金 | ランプ力(W): | 240 | ビーム角(°): | 70/90/120 | 働く寿命(時間): | 50000 | 色温度(CCT): | 涼しい白 | IPの評価: | IP65 | 光源: | LED | 項目タイプ: | 高いマストはつく | 製品名: | フラッドライトled | パワー: | 240ワット | ledライトを導いたチップ: | bridgeluxled | ip等級: | ip65 | ワーキング·ライフ- スパン: | 50、 000h | led発光効率: | 80-110lm/w | アプリケーション: | サッカーのフィールド、 屋外の場所、 スポーツフィールド | ビーム角: | 70/90/120度 | サイズ: | L450mm*w310mm*h250mm | ランプボディ材: | アルミ合金とガラスを強化 |
包装
| 包装: | ツーピース1箱と。 |

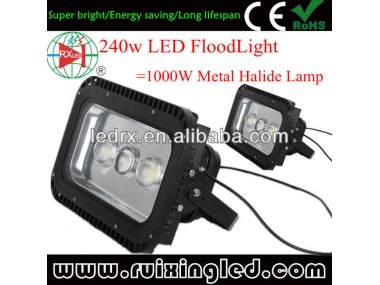

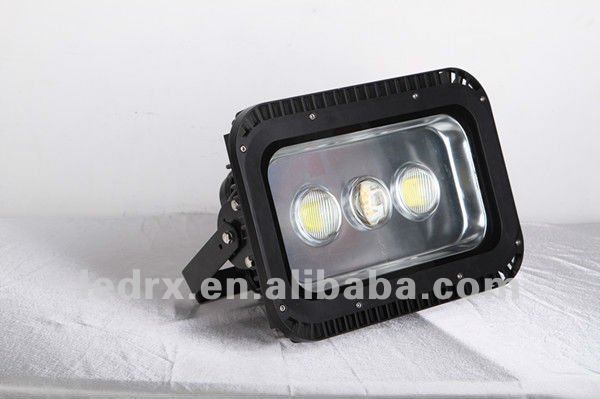

High Mast light 1000w Halogen Replacement 240W Flood Light LED
Feature:
1. Light Source: Use high brightness single semiconductor chip Bridgelux 45mil as light source, use multiple
integrated single-chip design.
2. Beam angle: With lens 70/90/120 degree available.
3. Material: Lamp sheel die-casting molding with aluminumalloy, more effective in cooling and warterProof,
dustproof.
4. LED Driver: Built-in-cross-flow Meanwell power supply, to ensure the lamp’s stability.can overcome the
electrical grid, noise pollution and unstable light caused by ballast. It can also eliminate the glare and fatigue.
5. Lighting Color: Can present the original color of the objects, it has varies of colors to choose which can meet the
requirements in different environments. It eliminates the dullness of environments caused by the lower color
temperature, like sodiumlamp, or higher color temperature, like mercury lamp. This could satisfy the feeling of those
who appreciate the lighting.
6. Heat disperse: The die-casting aluminumalloy housing maximized the heat-radiation effect.Built in copper sheet,
perfect heat dissipation
7. Obvious power-saving efficiency: Use powerful LED light source and high efficiency LED driver. Compare with
sodiumlights, it can save electricity around 60%.
8. Long life operate time: All have long warranties and a rated operational life of more than 50,000 hours, or more
than 11 years if it is used 12 hours per day!
9. Easy installation:Easier to be installed and to be unloaded; Can be used in different places.
10. Warranty: with Meanwell driver 3 years for lamp fixture.
11. Certificate: CE,RoHS
-----------------------------------------------------------------------------------------------------------------------------------------------------------------
Specification: 240W Flood Light LED
| Model Number | RX-FGD240CW-0 |
| Description | 240W Flood Light LED |
| LED Light Source | Bridgelux led |
| Light Quantity | 3pcs*80w |
| LED Luminous Efficiency | 80~110 lm/W |
| Lamp Total Power | 258W |
| Power Efficiency | > 85% |
| LED Initial Luminous Flux | 21600lm (Tj=60°C,Ta=25°C) |
| Diameter | L450mm*W310mm*H290mm |
| Color Rendering Index | Ra >75 |
| Color Temperature | warm white: 2700-3500 k |
| pure white: 5500-6500 k | |
| cool white:7000-12000 k | |
| Beam Angle | 70/90/120 degree |
| Light Distribution Curve/Beam Pattern | Asymmetric/ Rectangular Beam |
| Input Voltage | 90-240V AC |
| Frequency Range | 50/60 Hz |
| Power Factor | ≥0.95 |
| Total Harmonic Distortion(THD) | < 20% |
| Storage Temperature | -40°C--+80°C |
| Working Environment | -40°C--+50°C; 10%-95%RH |
| Usage Lifetime | > 50,000 hours |
| Protection Grade | IP65 |
| Lamp Body Material | Aluminum Alloy and Strengthened Glass |
| Color | black |
Advantage:
LED lighting is set to totally alter energy consumption patterns across the world in the next few years. Both governments and the global lighting industry have committed massive support for LED research and development. The benefits that domestic LED lighting bring are clear:
- Ultra low power consumption
- Cheap to run (save electricity)
- Climate friendly – convert energy to light, not heat
- Incredibly long life span (more than 50,000 hours)
- Huge variety of white tones and colors
- Very bright, clean light quality
- Lightweight, compact and attractive to look at
- Environmentally friendly – no mercury or lead
Details:
Net/Gross Weight(1pcs): 12KG/14KG
Package size: 500×495×385 mm(2Pcs)
