| 原産地: | 中国(本土) | 銘柄: | qyセンサー | モデル番号: | -13ql | 容量: | 10~200kg | 高精度: | 0.02%fs | グレードを守る: | ip65 |
包装
| 包装: | 標準exprotingと外箱内箱 |

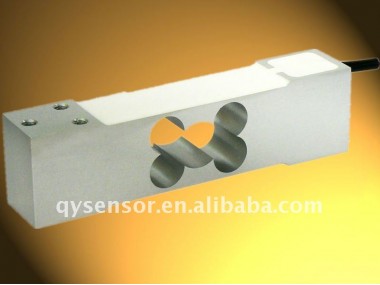

QL -13 load cells are available in the capacities from 10kg to 200kg.
Aluminum alloy construction with parallel beam type.
Silicon adhesive sealed, surface anodized and anti-corrosion.
Integral structure and easy installation.
Suitable for electronic price computing scale, electronic weight scale, electronic platform scales ,etc.
Features:
1.Capacity:10kg to 200kg
2.Defend grade: IP65
3.High accuracy,reliable performance.
4.Integral structure,easy installation.
5.Recommended platform size:350 × 400 (mm)
Electrical connection and Dimensions:(dimension unit:mm)
