| 原産地: | 中国(本土) | 銘柄: | shahe | モデル番号: | Sh-500 | 容量: | 500n |
包装
| 包装: | 標準的なパッキング |

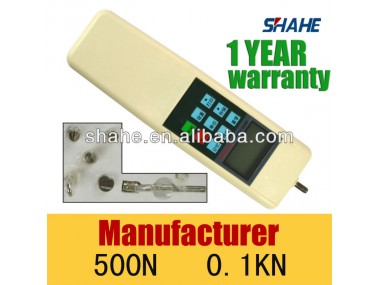

500N portable digital push pull gauge
Features&Funtcions
1. High resolution and high accuracy: precision grade 0.5, the minimum reading up to 0.001N
2. Peak hold function: can catch the peak in the test
3. Peak hold function: can catch the peak in the test
4. Three display modes are available: real-time, automatic peak, peak
5. 6 measurement modes: standard test mode, push and pull peak mode, push peak mode, pull peak
mode, external node off-on mode, external node on-off mode
6. Maximize the test efficiency
7. Function: freely setting on upper and lower deviation limit, LCD screen with "MAX" "MIN" display
and buzzer alarm
8. Signal output function: you can set the comparison value, when the measuring force value exceeds
the setted value, a signal is outputted
9. Automatic peak function: keep displaying the peak value for 2 seconds., then release
automatically
10. Automatic shutdown function: 10 minutes without operation it will automatically
shutdown
11. Calculation: connected to the computer, the gauge can automatically calculate the max & min.
value in every test
12. Real-time analysis function: connected to the computer, the gauge simultaneously displays the
test curves and make various analyses on the computer screen
Specification
Part No. | SH- 2 | SH - 3 | SH- 5 | SH- 10 | SH- 20 | SH- 30 | SH- 50 | SH- 100 | SH- 200 | SH- 300 | SH- 500 | SH- 1000 |
Capacity(N) | 2 | 3 | 5 | 10 | 20 | 30 | 50 | 100 | 200 | 300 | 500 | 1000 |
Resolution | 0.001 | 0.01 | 0.1 | 1 | ||||||||
Sensor | High precision S type(Built-in ) | |||||||||||
Accuracy | ±0.5% | |||||||||||
Battery | 7.2v 1.2v*6 Ni-MH battery pack | |||||||||||
Charging Time | 4-6 hours | |||||||||||
Battery Continuous Work Time | about 10 hours | |||||||||||
Battery Life | ≥300 times | |||||||||||
Charger | input: AC 220V 50HZ output: DC 10V 300 mA | |||||||||||
