| 原産地: | 中国(本土) | 銘柄: | a & eラボ | モデル番号: | WGZ-3C | 測定範囲(ntu): | 0〜2,0〜20,0〜200 | 読み出し精度(ntu): | 0.001 | 使用法: | 発電所、waterworks、治療局の国内汚水など |
包装
| 包装: | 標準的な輸出パッケージ。 |
A & E Lab Hot Selling are include: UV VIS Spectrophotometer, Visible Spectrophotometer, Flame Photometer, PCR-Cycler, Blocker Heater,Shaker Incubator,Melting Point Device, Hotplate, Stirrer, Stirrer Hotplate, Rotory Mixer, Tube Roller Mixer, 3D Rocker, See-Saw Rocker, Vortex Mixer, Orbital Shaker, Cold Keeper, etc.
Welcome to inquire us!

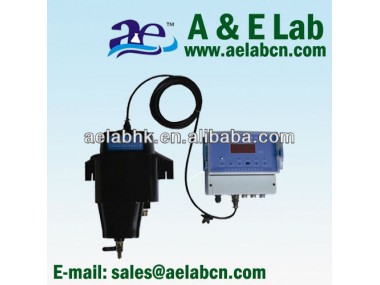

online turbidimeter
WGZ Series scattered light turbidity meter is used for measuring the scattering degree
of the lights generated by the insoluble grain matters suspended in water or transparent
liquids, with capability to characterize the content of these suspended grain matters.
It adopts the Formazine standard solution of turbidity specified in international
standard ISO7027, and NTU as the measure unit.
It can be broadly applied in the measurement of turbidity in power plants, waterworks,
treatment stations of domestic sewage, beverage factories, environmental protection
departments, industrial water, wine and pharmacy industries, epidemic prevention
divisions, hospitals, and etc.
Characteristics:
* Flow the line form features design, simple and direct operation with the higher sex price
ratio, adopt a lowdrift,the high accuracy electric circuit system, can go together with to
connect long range manifestation extension.
*The dependable fixed position structure and the high accuracy light road system, respond
to speed quick,measure accurate, the valid color degree is in expiation of, keeping read
muddy degree value.
*Have steady flow to eliminate the bubble device,high strength longevity life light source,
from measure function,the 4-20 mA signal exportation to connect.
*Measure the distance breadth, stabilize credibility;The school is quasi- in brief, the ABS
plastics cent body wall hang type, install maintenance simple, instrument ability long time
stable work.
Technical Specifications:
Model | WGZ-1C | WGZ-2C | WGZ-3C | WGZ-200C | WGZ-200C | |
Readout Accuracy (NTU) | 0.01 | 0.1 | 0.001 | 0.01 | 0.01 | 0.1 |
Measuring Range (NTU) | 0~20 | 0~200 | 0~2 0~20 0~200 | 0~20 0~200 | 0~20 | 0~200 |
Basic Error (F.S) | ±2% | |||||
Water Kind Discharge | 400~1000ml/min | |||||
Enter Water Pressure | 0.05 ~ 0.2 MPa | |||||
Adapt Temperature | 4 ~ 40 °C | |||||
Output Signal | 4 ~ 20 mA | |||||
