原産地: | 中国(本土) | 銘柄: | したい | モデル番号: | 穀物水分計 | lcdディスプレイ: | 固体%、水分%、3g、時間、℃ | 精度: | 1ミリグラム/5ミリグラム/10ミリグラム | 容量: | 50グラム/100グラム/110グラム | 加熱温度: | ハロゲン、50℃-180℃ (ステッピングは1 ℃) | 提案サンプル重量: | 0-10グラム | ミン。重量のサンプル: | 0.01% | パン: | 90ミリメートル | アウトライン: | 285*160*150ミリメートル | インタフェース: | rs232 | 名前: | ハロゲン加熱デジタル穀物水分計 |
包装
包装: | 44*27*36 センチメートル/カートン 、 4 キログラム/カートン 。 |

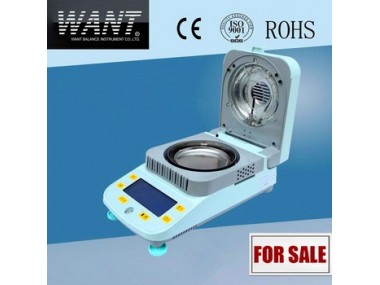

Halogen heating digital grain moisture meter
Introduction
This is a new product fully promoted in 2010,a new thermal insulation sensor is used inside this instrument in order to guarantee the meter satisfies experimental requirements and obtains more accurate data; key-type key board and ultra-large high resolution Backlight LCD provides rich weighing information for easy weighing and reading. Innovative operation panel, clear layout of function keys, simplified menu brower and balance setting make operation more convenient and straight; light and handy appearance occupies less space and realizes free movement. With excellent performance and high cost-performance ratio, it'll be user's preferential product.
Function
1. It is used to rapidly test free water in specimen of chemicals, grains, minerals, biological products, food, pharmaceutical material, papers and textile materials etc.
2. During the test, drying status can be directly confirmed in order to infer the closing time.
3. With its function of automatic faring, accurate measurement can also be achieved via zero-drift correction even after a certain period of continuous test.
4. Built-in RS232 interface guarantees direct connection to external equipment such as computer and printer.
Item | DSH | Min. weight of sample | 0.01% |
Outline Dimension | 285*160*150mm | Moisture accuracy % | 0.5 g |
Pan | 90mm | Propose sample weight | 0-10g |
Interface | Rs232 | Heating time | 1-99 mins (stepping 10s.) |
Heating temperature | 50-180 (stepping is 1 ) | Heating way | Halogen |
LCD Display | solid %, moisture %, g, time, | Working temperature | 10 - 30 |
PARAMETER | |||
Model | DSH-50-1;DSH-100-1 | DSH-50-5 | DSH-50-10 |
Readability | 0.001g | 0.005g | 0.01g |
Capacity | 0-50g; 0-100g | 0-50g | 0-50g |
----------------------------------------------------------------------------------------------
If you need, I will send you operation manual.
