| 原産地: | 中国(本土) | 銘柄: | darhor水の流量計 | モデル番号: | lzb | キーワード: | 水の流量計 | ブランド: | darhor | モデル: | lzb | 保証: | 1年間 | 媒体: | 液体、 ガス | スタッフ: | 500 | 証明書: | ce、 rohs指令、 tuv、 iso | 原産地: | 浙江、 中国( 本土) | 流量範囲: | 様々な |
包装
| 包装: | 白いカートン付きポリ袋の内側に水の流量計 |

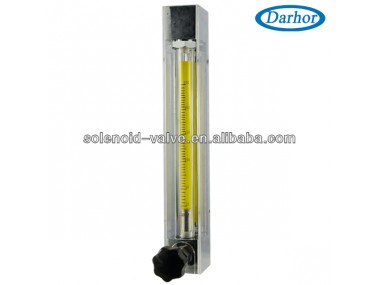

Adjustable water flow meter The material of the corrosion resistant flow meters parts that contacts the medium are as follows: the glass tube is made of high boron silicon glass, float and leader are covered with PTPE, and the seal ring is F46 ring. For the corrosion resistant flow meter,whose diameter is less than 10mm,the material of the base is stainless steel and the seal material is fluorine rubber.
Chemical resistance rotameter:
Model | A | B | C | D | E | F |
LZB-3 |
| 116 | 136 | Φ8 | 26x25 |
|
LZB-4 | 178 | 204 | 234 | Φ9 | 39.5x34 | 2-M6 |
LZB-6 | 178 | 204 | 234 | Φ9 | 39.5x34 | 2-M6 |
LZB-10 | 178 | 208 | 238 | Φ12 | 39.5x34 | 2-M6 |
Technical Parameters of LZB-series Glass Rotameter Type Flow Meter:
Model | LZB-3 | LZB-4 | LZB-6 | LZB-10 | |
Diameter (mm) | Φ3 | Φ4 | Φ6 | Φ10 | |
Measure Range
|
Liquid I/h | 2.5-25ml/min | 1-10 | 1-10 | 6-60 |
4-40ml/min | 1.6-16 | 100-800ml/min | 10-100 | ||
6-60ml/min | 4-40 | ||||
10-80ml/min | 2.5-25 | 10-100 | 16-160 | ||
10-100ml/min | 3.6-36 | 6-60 | 25-250 | ||
Gas Nm3/h | 0.03-0.3l/min | 0.2-2.5l/min | 0.04-0.4 | 0.1-1 | |
0.06-0.6l/min | 0.16-1.6 | ||||
0.1-1l/min | 0.016-0.16 | 0.06-0.6 | 0.25-2.5 | ||
0.15-1.5l/min | 0.025-0.25 | 1-10 l/min | 5-50 l/min | ||
0-100l/h | 0.04-0.4 | 0.1-1 | 0.5-5l/min | ||
0.3-3l/h |
|
| 0.6-6 | ||
|
|
| 0.6-7 | ||
Accuracy +%
| 46 | 2.54 | 2.5 | 2.5 | |
Mpa Working Pressure | ≤0.6 | ≤1 | ≤1 | ≤1 | |
More details: glass flowmeter
