| 原産地: | 中国(本土) | 銘柄: | yunyi | モデル番号: | dm2000 | 電流出力: | 4〜20maの | デジタル信号: | hartプロトコル | 電源: | 〜16dc30v( dc24v推奨します) | 密度範囲: | G0から2/cm3,0から3までg/cm3 | 精度: | 0.001g/cm3 | アイテム: | 液体密度計/液体濃度計 |
包装
| 包装: | 標準的な輸出パッキング |

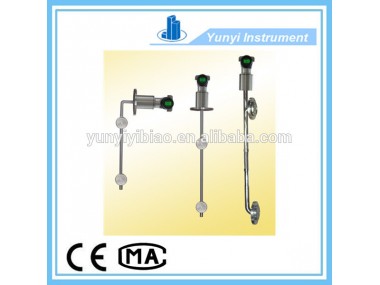

liquid density meter / liquid densitometer
Description of liquid density meter / liquid densitometer:
liquid density meter / liquid densitometer can be used for online density measurement of various liquid and liquid mixture. It is widely applied to the petrochemical industry, food industry, dairy industry, paper industry, chemical industry, biopharmaceutical industry and other production sites.
Technical Parameters of liquid density meter / liquid densitometer:
1. Current Output: 4 ~ 20mA
2. Digital Signal: HART protocol
3. Power Supply: 16 ~ 30V DC (24V DC is recommended)
4. Density Range: 0 to 2 g /cm3, 0 to 3 g / cm3
5. Accuracy: 0.001 g / cm3
6. Resolution: 0.0005 g / cm3
7. Temperature Range: 0 ~ 100 °C
8. Temperature Accuracy: 0.2 °C
9. Ambient Temperature: -10 ~ 60 °C
10. Humidity Range: 0 ~ 90%
Model and Suffix Codes of liquid density meter / liquid densitometer:
Model | Optional Code | Description |
DM2000 |
| Online Liquid Level Densitometer |
Installation and Shape | A······· | Vertically Mounted Type (Header Connected with Cylinder) |
B······· | Vertically Mounted Type (Square Flanges Connected) | |
C······ | Pipes Mounted at Side Type | |
Sensor Spacing | 5······ | 700mm |
| 10······ | 1000mm |
| 15······ | Special Requirement |
Measuring Range | 1······ | 0~1 g/cm3 |
| 2······ | 0~2 g/cm3 |
| 3······ | 0~3 g/cm3 |
Mounted Flanges | H6 | DN65 |
| H8 | DN80 |
| H10 | DN100 |
Typical Model | DM2000A51H8 | |
Display Header (optional) | Default | LCD Smart Display Header(0~100% linear display) |
Output Signal | Default | 4~20 mA |
Diaphragm Material | Default | 316 Stainless Steel ( Others can be set ) |
Transport Package | Wooden Box | |
about Us:
Xi'an Yunyi Instrument Co., Ltd. is a professional manufacturer that engaged in the fields of pressure measurement instrument, the chief engineer Mr Tian has more than 30 years on this area, he is one of the engineers who introduced the Rosemount technology. We specializing in developing high precision pressure transmitter and pressure gauges. And we also develop temperature transmitter, level transmitter, densitometer etc. They are widely used in chemical, petroleum, paper, electricity, city gas, environmental protection, water treatment and other fields.
