| 原産地: | 中国(本土) | 銘柄: | シェンジェンsunwoald | モデル番号: | Fs-2260r | 色: | 銀 | 材料: | 真鍮 | サイズ: | l22xw26xh70mm | コンタクトフォーム: | ノーマルオープン | スタート- 音量を上げ( 分): | 1.5l/min | が温度を運営し: | 0~+70°c |
包装
| 包装: | 内部のパッキング: 1PC/paper箱のマスターのパッキング: 100pcs/carton |

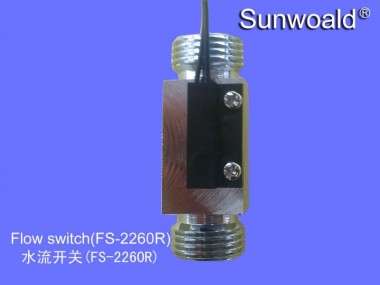

FS-2260R Brass Water Flow Control Switch
Electrical Characteristic:
- Contact form: A (Normally open)
- Max Contact Rating: 10W
- Max Switch Voltage: 100V
- Max Switch Current: 0.5A
- Max Contact Resistance: 100m ohm
- Min insulation Resistance: 100M ohm
- Electrical Life: 1x107 (5Vdc, 10mA)
Technical Characteristic:
- Start-up Volume(min): 1.5L/min
- Operate Volume(Max):30L/min
- Standard Operate Pressure: 0.01~0.4Mpa
- Suffering Pressure: 1.5Mpa
- Operate Temperature: 0~+70°C
- Mounting Position: Vertical
- Body Material: Brass
Switch Characteristic | Physical Characteristic |
1. Contact Form: A (Normally Open) | 1. Start-up Volume(min): 1.5L/min |
2. Max Contact Rating: 10W | 2. Operate Volume(Max): 30L/min |
3. Max Switch Voltage: 100V | 3. Standard Operate Pressure: 0.01~0.4Mpa |
4. Max Switch Current: 0.5A | 4. Suffering Pressure: 1.5Mpa |
5. Max Contact Resistance: 100m ohm | 5. Operate Temperature: 0~+70°C |
6. Min Insulation Resistance: 100M ohm | 6.Mounting Position: Vertical |
7. Electrical Life: 1x107 (5Vdc, 10mA) | 7. Body Material: Brass |
