| 原産地: | 中国(本土) | 銘柄: | pt | モデル番号: | Vms-a3020 | 有用な: | 測定 | 材料: | 鋼、 花崗岩 | 重量: | 204kg | 寸法( l*w*h)( mm): | 777*688*1100 |
包装
| 包装: | 無料木製のケースによってパッケージ |
Detail:

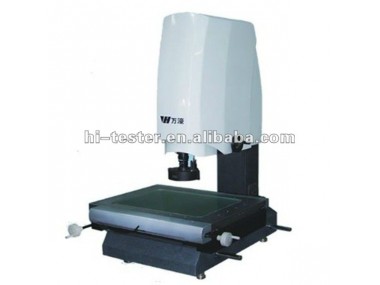

VMS-A series non-contact video measuring machine is a photo electric measuring system of high precision and efficiency. This video measuring machine is composed of a series of components, such as CCD color camera, continuous, zoom lens, precision linear scale, graphical measuring software and work table. This video measuring machine is mainly applied in 2D measurement, sometime in 3D as well
VMS-A series non-contact video measuring machines include Manual and CNC type, which can satisfy customers with different demands, This video measuring machine is widely used in the fields of mechanism, electronic, ironware, plastic, etc.
Manual machine adopt professional QIM 3008 measuring software which can process and output the graphic. User can order different types to their demands.
| The work talbe's size (mm) | 490*242 |
| Travle(mm) | 300×200 |
| Weight(kg) | 204 |
| Dimension(L*W*H)(mm) | 777*688*1100 |
| Power | 220V(AC)/AC110V |
