| 原産地: | 中国(本土) | 銘柄: | pt | モデル番号: | Vms-6060h | 有用な: | 測定 | 材料: | 鋼、 花崗岩 | 重量: | 1281kg | 寸法( l*w*h)( mm): | 1500*1300*1510 |
包装
| 包装: | 無料木製のケースによってパッケージ |
Detail:

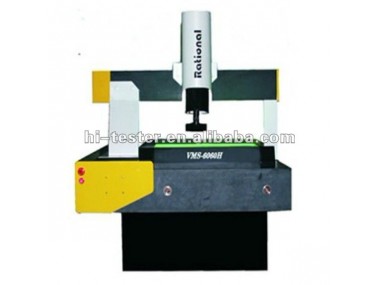

VMS-6060H video measuring machine adopts air bearing and servo control technology, with QIM-5008 automatic measuring software, this video measuring system can carry out mass measurement with accuracy and high efficiency. The video measuring machine is suitable with accuracy and high efficiency. The video measuring machine is suitable for inspecting and quality . controlling of precision components. It is widely used in mechanism, electronic, ironware, plastic. etc.
Specialities:
1. Program contrilled and constant current driven surface lamp is with four rings and four areas,suitable for
measuring various complicated Jobs
2. With quick auto-focus,auto-detect,strong program and auto-measure function.
3. Use sub-pixel technology to improvw the abillty of detecting the edges.
4. online SOC function,Fixture measurement
5. X, Y and Z axis were controlled by servo, with high positing accuracy and smooth operation, the speed can reach
300mm/s
6. Operate with Joystick and mouse which is very easy and convenient
7. X and Y dirction guide rail adopt high precision granite ,not easy to deform
8. The moving part of X and Y dirction adopt air bearing gudide system with low friction, high speed and high
precision
| The resolution of liner scale(μm) | 0.5 |
| The glass table's size(mm) | 640*770 |
| Travle(mm) | 600*600*200 |
| Weight(kg) | 1281 |
| Dimension(L*W*H)(mm) | 772*688*1100 |
| Power | 220V(AC)/AC110V |
