• ST800K光ファイバーパワーメータ/光学パワーdector-パワーメーター
    商品番号: 11625274
    仕入れる商品へのお問い合わせについて、
    お電話の場合:スタッフに商品番号をお伝えください。
    商品の詳細

    原産地: 中国(本土) 銘柄: senter モデル番号: ST800K
    実用温度: -10-+ 50 次元: 160*76*28 認証: iso 9001
    表示: 大型液晶 出力電力: -50〜+ 26、 バッテリー: ドライ単三電池または充電式リチウムイオン
    アダプタ: st、sc、fc、lc ブランド名: senter 外形寸法: 200*90*43
    重量: 430グラム バッテリー作業持続時間: 以上150 hs 波長:: 800〜1700

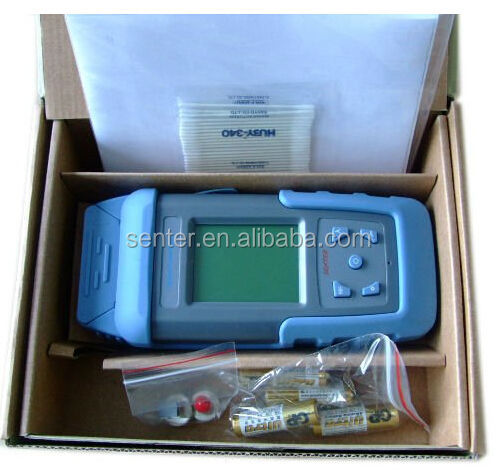

    包装

    包装: カートン

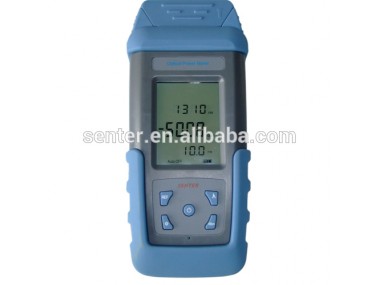

    With a wide range of functions, ST800K optical power meter is a powerful tool for use in fiber-optic installation and maintenance. Its rugged, durable construction makes it the perfect choice for a wide range of field applications.

    ST800K Optical Power Meter can test optical power within the range of 800~1700nm wave length. There are 850nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm, six kinds of wavelength calibration points. It can be used for linearity and non-linearity test and it can display both direct and relative test of optical power.

    This meter can be widely used in the test of LAN, WAN, metropolitan network, CATV net or long-distance fiber net and other situations.

    2. Functions

    2.1 Multi-wavelength precise measurement

    2.2 Absolute power measurement of dBm or xW

    2.3 Relative power measurement of dB

    2.4 Auto off function

    2.5 270, 330, 1K, 2KHz frequency light identification and indication

    2.6 Low voltage indication

    2.7 Applicable to versatile adapters (FC, ST, SC, LC)

    2.8 Handheld, large LCD backlight display, easy-to-use

     3. Specifications



    Wavelength range (nm)

    800~1700

    Detector type

    InGaAs

    Standard wavelength(nm)

    850, 1300, 1310, 1490, 1550, 1625

    Power testing range (dBm)

    -50~+26 or -70~+3

    Uncertainty

    ±5%

    Resolution

    Linearity: 0.1%, Logarithm: 0.01dBm

    General specifications

     Connectors

    FC, ST, SC or FC, ST, SC, LC

    Working temperature (°C)

    -10~+50

    Storage temperature (°C)

    -30~+60

    Weight (g)

    430 (without batteries)

    Dimension (mm)

    200×90×43

    Battery

    4 pcs AA batteries (lithium battery is optional)

    Batteryworking duration(h)

    No less than 150  (according to battery volume)

    Auto power off time (min)

    10

                                       ST800K Optical Power Meter Series of Products

        Model No.

    Power test range(dBm)

    Adapter interface

    ST800K-A

    -50~+26

    FC,ST,SC

    ST800K-B

    -50~+26

    FC,ST,SC,LC

    ST800K-C

    -70~+3

    FC,ST,SC

    ST800K-D

    -70~+3

    FC,ST,SC,LC
