| 原産地: | 中国(本土) | 銘柄: | haida | モデル番号: | hd- | 圧力範囲: | 1000N-13KN | アッパープラテン直径: | 150ミリメートル | 力エラー: | ± 1% | ユニット: | キロ/ n/lb | 運転モード: | 空気圧シリンダ | タイマー: | 0〜9999 s | テストスペース: | (l *ワット* h) 200*200*200ミリメートル | ビューウィンドウサイズ: | 200*200ミリメートル | 照明: | 装備は照明ランプではトップ内部チャンバ本体 | 羽口: | 2ピース |
包装
| 包装: | 各セット で保護樹脂繊維と pp フィルム 、 その後置く に強い木製ケース で操作マニュアル と ビデオ内部。 |

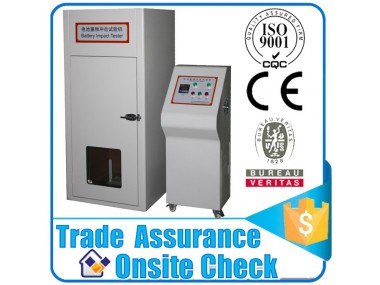

Digital Battery Squeezing Test Machine
Product Description
Digital battery squeezing tester is used for inspecting the safety performance of battery through squeeze test and the battery should not ignite or explode after test
Digital battery squeezing tester is also the essential test equipment of all battery manufacturers and research institutions.
Design Standard:
UL1642,UL2054,SJ/T 11169-1998,YD 1268- 2003,SJ/T 11170-1998,GB 8897.4-2002
Main Technical Parameters:
Pressure range | 1000N~13KN |
Upper platen diameter | 150mm |
Force error | ±1% |
Unit | Kg/N/Lb |
Driving mode | Hydraulic pressure |
Clamp driving mode | Pneumatic cylinder |
Timer | 0~9999s |
Test space | (L*W*H) 200*200*200mm |
View window size | 200 * 200mm (Double anti-explosion glass with thickness of 10mm) |
Lighting | Equipped with a lighting lamp at the top inside the chamber body |
Tuyere | 2 pieces |
Exhaust fan outlet | Diameter 150mm |
Machine dimension | (L*W*H)79*58*160mm |
Controller dimension | (L*W*H)33*33*104mm |
Weight | 250KG |
Power | Three phases, 380V |
Image:
