| 原産地: | 中国(本土) | 銘柄: | huato | モデル番号: | HE801 | 理論: | 温度のレコーダー | 温度範囲: | -200〜+ 1800 ℃ | 正確さ: | ±1℃ | 使用法: | 産業 | センサータイプ: | 18k、 j、e、 t、r、 s、 n、bは選択可能 | キャリブレーション: | 顧客缶それ自分で | センサーケーブル: | 標準は3メートル長い、 ことがextened | メモリ容量: | 88ポイントによる手 | 寸法: | 187ミリメートル* 73ミリメートル* 53ミリメートル | バッテリー: | 9ボルト | 重量: | 320グラム | 証明書: | ce、iso | 無料: | tnt、ups、dhl、フェデックス、ems |
包装
| 包装: | 標準またはカスタマイズされたパッケージ |
HE701 Thermocouple Thermometer/multi-channel thermocouple thermometer/temperature data logger
Introduction
HUATO thermocouple data logger is a rapid, reliable temperature instrument with high precision. It can support 8 types thermocouple such as K, J, E, T, R, S, N and B. Before delivered to the customer, all the HE series instrument has been calibrated by FLUKE thermocouple calibrator. Customer can have many choices according to their demands.
Applications
It widely applied in Electronics, food industry, warehousing, textile industry, incubator and scientific research fields
Features: (1) Capacity 36000 data logger. (2) Big size LCD and USB interface. (3) Log interval:2s~24h (4) Tespro Analysis software used to view graph for logging data, configuration ,powerful ability of data analysis and friendly human-computer interface |
PRODUCT LIST | ||||||
Model | Thermometer | Thermometer logger | ||||
HE701 | HE702 | HE704 | HE801 | HE802 | HE804 | |
Temperature Channel | 1 | 2 | 4 | 1 | 2 | 4 |
Temperature Accuracy | ±1°C | ±1°C | ±1°C | ±1°C | ±1°C | ±1°C |
Automatic Recording Capacity | ------ | ------ | ------ | 36000 | 36000 | 36000 |
Manual Recording Capacity | 88 | |||||
Sensor type | K,J,E,T,R,S,N,B | |||||
Measuring range | -200~1800°C | |||||
TECHNICAL PARAMETERS | |
Sampling rate | Fastest 1/sec, from 1 to 240 seconds can be set |
Power supply | 9V block battery |
Display | Large-screen LCD,4 sets of temperature data also showed |
Dimension | 187*73*53mm (7.36*2.87*2.08 inch) |
LCD size | 54*44mm (2.12*1.73 inch) |
Weight | 320g |
Accessories | Tespro analysis software CD, manual, dedicated USB connection cable, 9V battery ,test certificate, Warranty card |

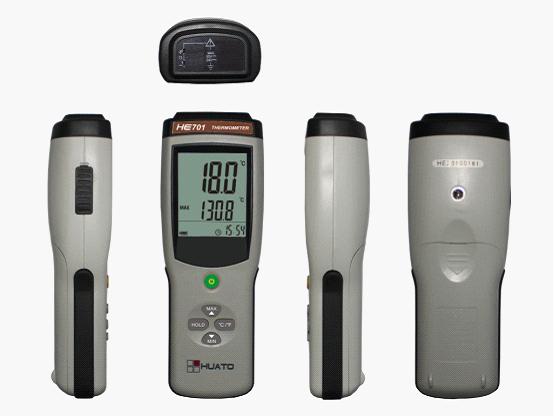

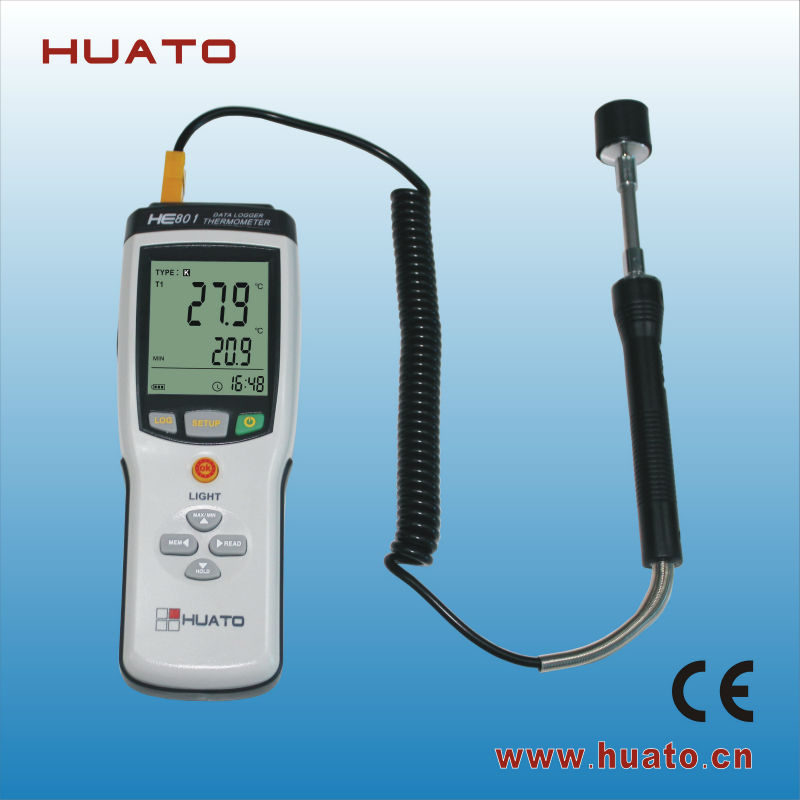

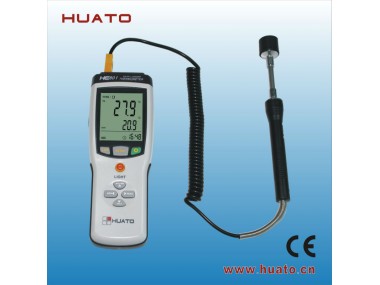

Product picture
