| 原産地: | 中国(本土) | Drawtube: | Monocular | 銘柄: | scmmc | モデル番号: | sc300 | 理論: | ビデオ顕微鏡 | ステータス: | 新しい | 保証: | 1年 | 証明書: | ce | 倍率: | 50x-300x | ズーム比: | 0.65x-4.5x | 観察するヘッド: | 単眼 |
包装
| 包装: | 1集合/カートン、 カートンのサイズ: 52*40*22cm総重量: 正味重量キログラム11: 9キログラム |
3D Digital Video Zoom Stereo Microscope
Other name
3D Three-dimensional rotated zoom video microscope systems
3D Digital Microscope Quality Inspection Platform
Item NO: SC300
Instruction

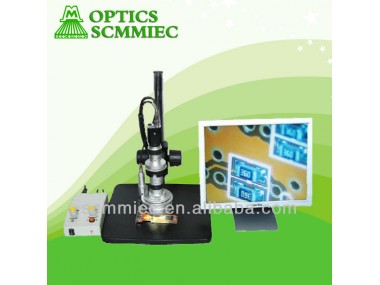

SC300 3D Microscope is the ultimate digital video microscope inspection system for inspecting three dimension structures like SMT solders joints, QFP, capacitors, connectors, wire bonds, medical stents, medical devices and chemical powders. The system has a special 45 degree oblique viewing adapter which is motorized to rotate around the sample for three dimensional viewing. It is also good for top down viewing. Rotation speed (fast/slow/stop), direction (clockwise and counter-clockwise) and LED light intensity can be controlled easily. Other angle (25, 35, 55) viewing adapters are also available. The system is configured with High Resolution Color CCD Camera for real time viewing (30 fps) and image capturing, and with Measurement Software for doing real time LIVE video measurement (point to point, line width, circle diameter, angle and linear distance, etc.) and image processing (Tiling and Multi-Focus) functions. Megapixel cameras, XYZ measurement stages and various stand options are also available.
Specification
Lighting Method | Integrated height lighting LED ring light |
Total Magnification | 50X-300X *1/3” CCD @ 17” LCD Monitor |
Zoom Body | 0.65X-4.5X |
Field of View | 8.5mm-1mm(H) |
Working Distance | 25mm |
Items Included | Zoom Lens: 0.65-4.5X |
Objective Lens: 1X | |
TV Tube: 1X CCD | |
Connect Cables | |
Viewing Angle: 45D(25D~55D Option) | |
Rota-Motor/LED Light Control Box | |
Post stand | |
1/3” Color CCD |
