| 分類: | 実験室の暖房設備 | 原産地: | 中国(本土) | 銘柄: | サミー | モデル番号: | MYP10-1 | モデル: | MYP10-1 | 電圧: | ac220v +-10% | 周波数: | 50/60ヘルツ | マックス攪拌容量: | 各位置1000ミリリットル | タイプのモーター: | ステッピングモータ | 速度範囲: | 0-350 rpm | タイミング時間: | 1 second-999hours、解像度1第二 | インターバル時間: | 0-255分、解像度1第二 | 作業表面材料: | ステンレス鋼またはabs | 許容周囲温度: | 相対温度< 98% |
包装
| 包装: | 木製のパッケージのための特別な輸出。 |

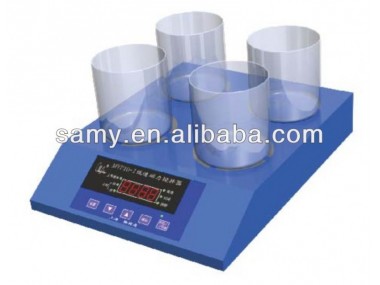

MYP10-1 Low speed stirrer
Feature
Specially designed for laboratory biological cultivation stirring
Stirrer driven by high subdivision stepping motor,start and stop speed can be controlled,soft-start and soft-stop can be truly achieved,acceleration is achievable and speed is entirely controllable and steady,ths avoiding
extra disturbance to medium or harm to cell
Programmable rate raise,rotational speed and time control by program control,allow your application with great
facility
Technical data
Model | MYP10-1 |
Voltage(VAC) | AC220V+-10% |
Frequency(HZ) | 50/60 |
Max stirring capacity(H2O) | Each position 1000ml |
Type of motor | stepping motor |
Speed range(rpm) | 0-350 |
Rotational speed display | LED |
Timing time | 1 second-999hours,resolution 1 second |
Interval time | 0-255 minutes,resolution 1 second |
Working surface material | stainless steel or ABS |
Working surface dimension(mm) | Each position ¢140*140 |
Allowable ambient temperature(°C) | relative temperature<98% |
Remark | Can be made according to customer’s requirements |
Unites position | Dimensions(mm) |
Single position | 170*220*65 |
Two positions | 280*220*65 |
Four positions | 280*360*65 |
Six positions | 420*360*65 |
