| 分類: | 実験室の暖房設備 | 原産地: | 中国(本土) | 銘柄: | サミー | モデル番号: | MYP11 | モデル: | MYP11-2 | 電圧: | 220ボルト | 周波数: | 50/60ヘルツ | 電源: | 620ワット | max. stirring容量: | 20l | 磁気バーmax. length: | 80ミリメートル | モータタイプ: | ブラシレス | モータ電源: | 15ワット | 速度範囲: | 50-1500 rpm | スピード表示: | led |
包装
| 包装: | 木製のパッケージのための特別な輸出。 |

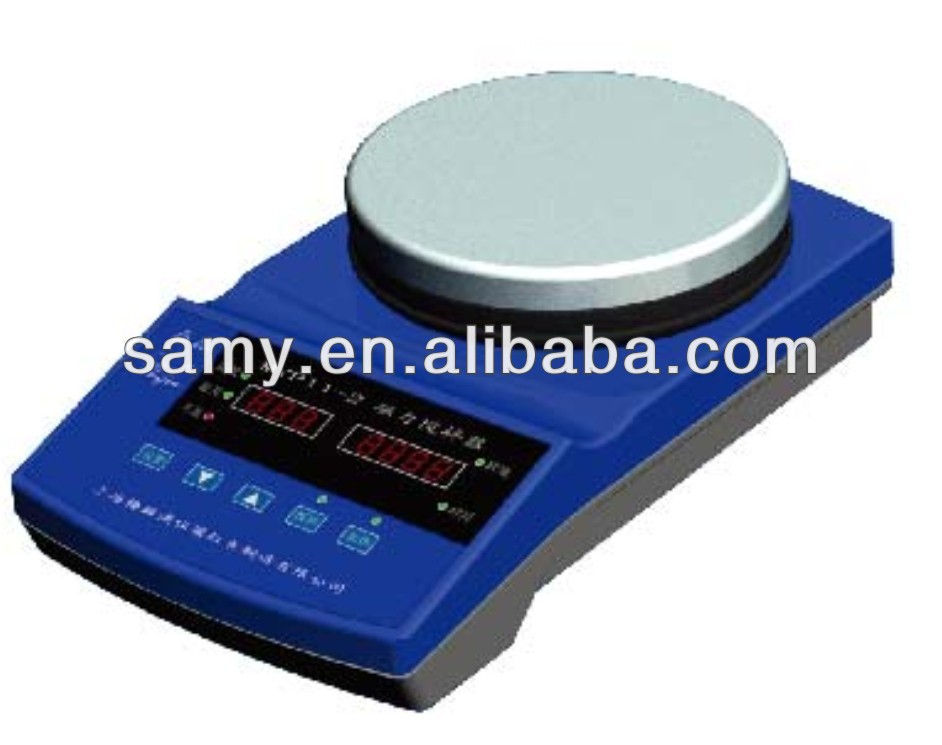

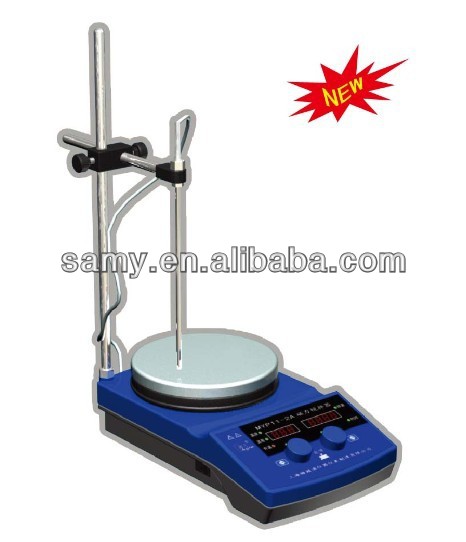

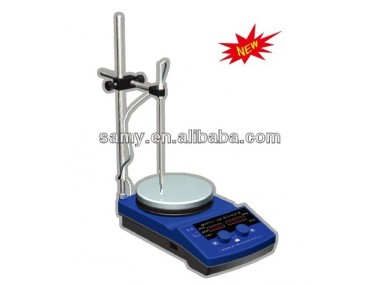

MYP11 Series Intelligent magnetic stirrer
Feature
Fast heating and strong sirring force,accurate temperature control,timing function,suitable for unmanned operation
No need for separate temperature controller or contact type thermometer,since accurate temperature control can
be achieved by built-in platinum resistance transducer
With electric relay for temperature protection function,which can prevent over-heating of electric heating plate,to avoid accident.
Strong magnetic force and soft start function,to prevent jump of stirrer bar
3 phase brushless DC motor drive,steady rotational speed,high regulation ratio of speed,steady operation can
already be achieved with 50rpm.
2 LED display windows,displaying respectively rotational speed,timing,liquid temperature and heating plate
temperature.
Micro computer control,data setting can be saved.
New layout,broad panel,proper visual angle,convenient operation.
Both button control and rotary encoder control available for user’s choice.
Technical data
Model | MYP11-2 | MYP11-2A |
control | Button | Knob |
voltage(VAC) | 220 | 220 |
frequency(HZ) | 50/60 | 50/60 |
power(W) | 620 | 620 |
(H2O)(L)max.stirring capacity | 20 | 20 |
magnetic bar max.length(mm) | 80 | 80 |
motor type | Brushless | Brushless |
motor power(W) | 15 | 15 |
speed range(rpm) | 50-1500 | 50-1500 |
speed display | LED | LED |
working plate material | Aluminum Alloy | Aluminum Alloy |
working plate size(mm) | ¢145 | ¢145 |
heating power(W) | 600 | 600 |
heating speed (1 L water)(K/min) | 6 | 6 |
heating temp.range(°C) | Room temperature -320 | Room temperature -320 |
temp.display | LED | LED |
working plate max.safety temp.(°C) | 350 | 350 |
External transducer temp. Control precision(°C) | +-0.5 | +-0.5 |
Allowable ambient temp(°C) | 5-40 | 5-40 |
Allowable ambient humidity | 80% | 80% |
Weight(kg) | 2.7 | 2.7 |
Dimension(mm) | 280*160*90 | 280*160*90 |
Main Stirrer description
Model | Description |
MYP11-2 | SATANDARD MAGNETIC STIRRER,BUTTONCONTROL |
MYP11-2S | Intelligent magnetic stirrer,button control,R232 interface plus remote controller |
MYP11-2A | standard magnetic stirrer,knob control |
MYP11-2AS | intelligent magnetic stirrer,button control,R232 interface plus remote controller |
MYP11-3 | standard magnetic stirrer(without heating),button control |
MYP11-3S | intelligent magnetic stirrer(without heating),button control,R232 interface plus remote controller |
MYP11-3 | standard magnetic stirrer(without heating),knob control |
MYP11-3AS | intelligent magnetic stirrer(without heating),button control,R232 interface plus remote controller |
