| 分類: | 実験室のサーモスタット装置 | 原産地: | 中国(本土) | 銘柄: | サミー | モデル番号: | zhp | モード: | zhp | 電力供給: | 220ボルト50 ｈｚ | 温度範囲: | 4〜60℃ | 温度分解能: | 0.1 ℃ | 温度変動: | +-0.5 ℃ | 温度均一: | +-0.5 ℃ | 揺れモード: | サイクロトロンシェイク | 作業時間: | 連続 | 振幅のシェイク: | 20ミリメートル | 周囲温度。: | 10〜30℃ |
包装
| 包装: | 輸出のための特別な木製のパッケージ。 |

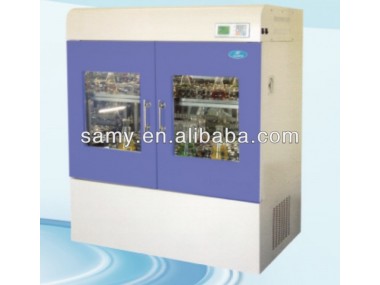

ZHP series Intelligent Thermostatic shaking incubator
(Thermostatic shaking table)
Applicable range
ZHP series intelligent thermostatic shaking incubator(thermostatic shaking table) is widely applied to germiculture,ferment,cross breeding and biochemical reaction
as well as enzyme and cell organization research with the requirement of temperature and shaking frequency,it
can be used for dynamic and static culture of microorganism cell and various fungi.
Feature:
Integration of thermostatic incubator and shaker,one machine for two purposes
Microcomputer controls temperature and shaking frequency,with timing function,LCD can display the temperature
and frequency continuously and accurately,it runs stably,constantly and reliably,with then functions of
protections against the over temperature,power failure,electricity leakage,sensor fault alarming,etc.
Both compressor and circulating blower employ the exported products,they are distinguished by environmental
protection and freon-free refrigeration
AC brushless motor is used,boasting long service life,wide range of speed regulation,constant moment,constant
rotation speed,maintenance free,etc.
It adopts conception & aesthetics design,with the observation window,The internal bladder and shaking table is
made of germproof stainless steel,and four corners are circular,taking convenience for cleaning.
It here is a switch for door,when the door is opened,the shaking system stops working,when it is closed,the
shaking system starts automatically
Special control speed-rotation circuit,can ensure that the shaking table starts slowly,speeds up stably,and also can prevent the liquid
being splashing out,to guarantee the safety of experimental product
Through an independent temperature limit alarming system(optional),the incubator can cut off the power automatically if beyond the limiting temperature,to guarantee the
safety run of experiment and prevent the accident.
With LCD display,the upgrade type intelligent thermostatic shaking incubator(thermostatic shaking table)has more novel appearance,higher precision of temperature control,more stable of shaking frequency and more
perfect protection besides above mentioned functions,meanwhile,it may be equipped with RS-485 interface(optional) that can be connected with printer and computer to record the change of temperature parameters.
Technical parameters
Mode
Technical Indexes | Shaking incubator(single layer) | Double-layer thermostatic shaking table | ||||||||||
ZHP-100E(L) | ZHP-160E(L) | ZHP-250E(L) | ZHP-Y2102F(L) | ZHP-Y2112F(L) | ZHP-Y2122F(L) | |||||||
Volume | 100L | 160L | 250L |
|
|
| ||||||
way of opening door | single opening | single opening | double opening | |||||||||
Power supply | 220V 50HZ | |||||||||||
Temp range | 4~60°C | |||||||||||
Temp resolution | 0.1°C | |||||||||||
Temp fluctuation | +-0.5°C | |||||||||||
Temp homogeneity | +-0.5°C | |||||||||||
shaking frequency | single layer:40-280rpm double layer:40-200rpm | 30-300rpm | ||||||||||
shaking mode | Cyclotron shake | |||||||||||
Power | 300W | 500W | 800W | 600/800W | 900/1200W | 1100/1500W | ||||||
working time | continuous | |||||||||||
Amplitude of shake | 20mm | |||||||||||
Ambient temp. | 10~30°C | |||||||||||
Size of internal bladder(mm) | 300*300 | 400*350 | 500*350 | 750*450 | 970*550 | |||||||
Outline Dim.(mm) | 510*550*1045 | 600*580*1380 | 630*650*1790 | 700*650*1230 | 950*710*1250 | 1200*820*160 | ||||||
Timing range | 1-9999min | |||||||||||
Rocking layer | 300*300 rocking plate(single layer);400*350rocking plate(single layer);500*350rocking plate(single layer);750*450rocking plate(single layer);970*550rocking plate(single layer);1000ml--4pcs; | |||||||||||
Remark | Note:”L” represent the temperature range RT+5~65°C | |||||||||||
