| 分類: | 実験室のサーモスタット装置 | 原産地: | 中国(本土) | 銘柄: | サミー | モデル番号: | lhp | モード: | lhp | 周囲温度: | 5〜35℃ | 温度範囲: | 0〜60℃ | 温度分解能: | 0.1 ℃ | 温度均一: | +-1℃ | 温度変動: | +-0.5 ℃ | 湿度範囲: | 50〜95% rh | 湿度変動: | +-5%〜+-8% rh | 電力供給: | 220ボルト50 ｈｚ | タイミング範囲: | 1-9999分 |
包装
| 包装: | 輸出のための特別な木製のパッケージ。 |

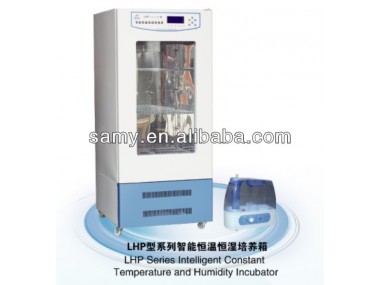

LHP series intelligent constant temperature and humidity incubator
Applicable range
LHP series constant temperature and humidity incubator,equipped with accurate temperature and humidity
control system,provides the various environment simulated conditions for test of biotechnology industry
research and biotechnology test,it is widely applied to the sterility test and stability test of medicine,textile
industry,food processing as well as performance test and product packaging life test of industrial product raw
material.
Feature:
The microcomputer based temperature and humidity controller,featured with the accurate temperature and
humidity has the protections against the over temperature,electricity leakage,power failure as well as sensor
failure alarming etc...
The imported freon-free refrigeration compressor and cirulating blower are used,with the features of forced convection and air
circulation,high efficiency,low energy consumption,low noise,homogeneous temperature distribution,long
service life.
It adopts the internal bladder made of finished stainless steel as well as four semi-circular corners,which are easy for cleaning,the gap of shelf in the incubator is adjustable.
High accuracy and large capacity humidity generator,ensuring rapid humidity control,high accuracy and small
fluctuation.
Through an independent temperature limit alarming system (optional),the incubator can cut off the power
automatically if beyond the limiting temperature,to guarantee the safety run of experiment and prevent the
accident.
The quipped RS485 interface(optional)enables the incubator to record the change of temperature and humidity.
There is an observation window equipped in the incubator door and an illuminating lamp set in the incubator,
both of them facilitate the observation to culture in the incubator,the double door structure are also available,
the internal door is made of toughened glass.
There is a testing hole(optional) mounted on the left of incubator body,taking convenience for experiment operation and temperature
measurement.
Besides above functions,the upgraded type LCD constant temperature and humidity incubator with large
screen has the obvious features like novel appearance,simple operation,programmable control and built in
humidifier,and it may be equipped with built in printer.
Technical parameters
Mode
Technical Indexes | LHP-160(E) | LHP-250(E) | LHP-300(E) | LHP-400(E) | LHP-500 (E) | |||
Volume | 1 60L | 250L | 300L | 400L | 500L | |||
Refrigeration system | Selecting at will | |||||||
Ambient Temp | 5~35°C | |||||||
Temp range | 0~60°C | |||||||
Temp resolution | 0.1°C | |||||||
Temp homogeneity | +- 1°C | |||||||
Temp fluctuation | +-0.5°C | |||||||
Humidity range | 50~95%RH | |||||||
Humidity fluctuation | +-5% ~+- 8%RH | |||||||
Power supply | 220V 50HZ | |||||||
Power | 500W | 800W | 1000W | 1200W | 1500W | |||
Size of internal bladder(mm) | 500*400*800 | 530*480*1000 | 560*500*1200 | 600*550*1250 | 650*600*1300 | |||
Outline Dim.(mm) | 600*580*1250 | 650*700*1450 | 666*705*1650 | 706*756*1700 | 756*805*1750 | |||
Shelves(normal) | 3 | 3 | 4 | 4 | 4 | |||
Timing range | 1-9999min | |||||||
Remark | Note: E represents LCD controller. | |||||||
