| 分類: | プラスgenexピペット, ピペット | 原産地: | 中国(本土) | 銘柄: | eの4つ | モデル番号: | プラスgenexピペット | のために使用され: | 液体の転送 | スタイル: | シングルチャネルと8または12チャンネル | 保証: | 3年間 | ボリューム範囲: | 0.1-5000ul | 完全にオートクレーブ可能: | 121°c、 20分 | 機能: | 抗- uv | 体系的な最大許容誤差: | ±0.5%~±1.3% | 最大許容誤差ランダム: | 0.15%~0.8% | ディスプレイ:: | 明確かつ簡単にするために-- 読んで | 製造されてい:: | 革新的な材料 |
包装
| 包装: | エクスポートカートン |
Product Description
factory outlet high accuracy good medical lab equipments variable volume autoclaved pipette Introduction:
Four E’s Scientific pipettes are for general purposes of accurate and precise sampling and dispensing of liquid volumes.
They work on the air displacement principle and use disposable tips. All our pipettes have been quality tested according to ISO8655.
The quality control involves gravimetric testing of each pipette with distilled water (grade 3, ISO3696) at 22°C. The Genex Plus series have 7 sizes of Single Channel and 4 sizes of Multi Channel.
Features:
The patented spring mechanism (plunger technology) allows for the exceptionally light pipetting force.
Together with the light tip ejection force and the ergonomic design of the handle, it can reduce the risk of Repetitive Strain Injury (RSI).
Compared to the heavy pipetting force resulted by the compression spring mechanism, the tension spring mechanism used with Genex
Plus makes pipetting force almost 4 times lighter. Moreover, thanks to the unique mechanism, the starting force is always constant regardless of the volume.
Genex Plus can provide significantly lighter pipetting force than other mechanical pipettes in the marketplace.
Unique protection with Safe Tip Cone Filters
- Replaceable Safe tip cone filters can prevent contamination of the pipette
- Safe tip cone filters can be removed easily and safely
- Safe tip cone filters are available for all models greater than 10ul
- The filters must be replaced regularly especially in the case of over-aspiration
Opti-load Mechanism for Multi-Channel
Optiload mechanism (Spring loaded tip cones) allows tips to be loaded with constant force. It makes the tips attach to the tip cones with minimum force and makes easy tip ejection. The piston/tip cone can be removed without any tool, which can help for easy maintenance.
Others
- Fully autoclavable (121°C, 20 minutes)
- Thermal insulation of the internal components improves accuracy
- Both right and left-hand use
- Volume lock prevents accidental volume change
- The independent tip ejector reduces the risk of accidental tip ejection
- 3-year warranty
Specification:
| Single-channel Adjustable Volume Pipettes | ||||
| Code | Volume Range | Increment | Maximum permissible systematic error(Inaccuracy) | Maximum permissible random error (Imprecision) |
| TB-PP-01 | 0.1-3ul | 0.002ul | ±1.3% | 0.80% |
| TB-PP-02 | 0.5-10ul | 0.01ul | ±1.0% | 0.60% |
| TB-PP-03 | 2-20ul | 0.02ul | ±0.9% | 0.40% |
| TB-PP-04 | 10-100ul | 0.1ul | ±0.8% | 0.15% |
| TB-PP-05 | 20-200ul | 0.2ul | ±0.6% | 0.15% |
| TB-PP-06 | 100-1000ul | 1ul | ±0.6% | 0.20% |
| TB-PP-07 | 500-5000ul | 10ul | ±0.5% | 0.20% |
| 8-channel Adjustable Volume Pipettes | ||||
| Code | Volume Range | Increment | Maximum permissible systematic error(Inaccuracy) | Maximum permissible random error (Imprecision) |
| TB-PP-08 | 5-100ul | 0.1ul | ±0.7% | 0.25% |
| TB-PP-09 | 30-300ul | 0.2ul | ±0.6% | 0.25% |
| 12-channel Adjustable Volume Pipettes | ||||
| Code | Volume Range | Increment | Maximum permissible systematic error(Inaccuracy) | Maximum permissible random error (Imprecision) |
| TB-PP-10 | 5-100ul | 0.1ul | ±0.7% | 0.25% |
| TB-PP-11 | 30-300ul | 0.2ul | ±0.6% | 0.25% |

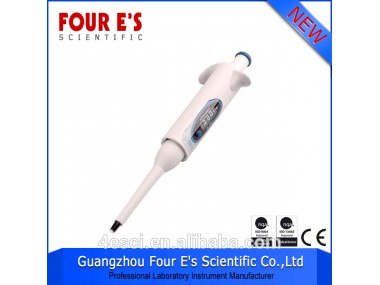

Pciture shows:
1. Warranty
In accordance with 4E's warranty conditions,the warranty period is 24 months.For claims under the warranty,you may return the machine directly to our factory,enclosing the delivery invoice and giving reasons for the claim.You will be liable for freight costs.
The warranty does not cover worn out parts,nor does it apply to faults resulting from improper use,insufficient care or maintenance not carried out in accordance with the instrutions in the operating manual.
2. Customization
Custom manufacturing is an important part of our business and core competency.We're experienced in the OEM services and customers who need custom products made to customer specifications are welcome to contact us directly to review your needs and get a custom quotation.
Any further information you need,please do not hesitate to contact me:
