LED Temperatrue Thermocouple Indicator
High accuracy,good stability
Accepts 4 types thermocouple probe
error:0.2%/1 character

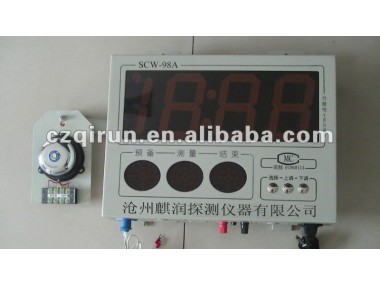

The Hang Type LED Temperature Thermocouple indicator is connected with the thermocouple probe uesd for momitoring the temperature of molten metal for smelting and casting.
Technical Specification:
1.Measuring error:±0.2% ±1characters.
2.Working conditions:temperature 5-40°c relative humidity 85%
3.Storage conditions:temperature 0-45 °crelative humidity 85%
4.Power supply way:AC 220V ±10%;Frequency:50HZ± 2Hz
5.Power loss approximately: 50W
Type | SW-98A | |||
Thermocouple Tyoe | S | Wre3/25 | R | B |
To test molten steel temperature range | 1200°C-1769°C | 1000°C-1999°C | 1200°C1769°C | 1200°C-1820°C |
To test molten Iron temperature range | 900°C-1769°C | 900°C-1999°C | 900°C-1769°C | 900°C-1820°C |
To test molten Copper temperature range | 800°C-1769°C | 800°C-1999°C | 800°C-1769°C | 800°C-1820°C |
Continuous temperature-measuring range | 0°C-1769°C | 0°C-1999°C | 0°C-1769°C | 400°C-1820°C |
Display | Super-bright LED display,High character 127mm(5 inches)or liquid crystal display | |||
Size | 410mm*300mm*95mm | |||
Weight | 4kg | |||
The acousto-optics alarm:
a.The gree light bright expression thermcouple puts through,the measuring appliance enters the preparation condiction.
b.The yellow light brightly expressed the measuring appliance is surveying.
c.The red candle bright expressiong survey process ended,at the same time the electric bell inspires the sound,4-20mA or 1-5V analog output interface (specify when ordering),BCD at-large external display for the parallel interface
