| 原産地: | 中国(本土) | 銘柄: | 日曜日 | モデル番号: | ssp | 次元の許容: | 0.05ミリメートル | 表面質: | 60/40 | 材料: | Bk7,k9,溶融シリカ、 sapphie | 平坦: | ラムダ/lambda420から | 角度許容: | 30 | サイズ: | 2mm300mmまで |
包装
| 包装: | 補強カートンケース、 しっかりと空気の伝送のための安全なパッケージ |

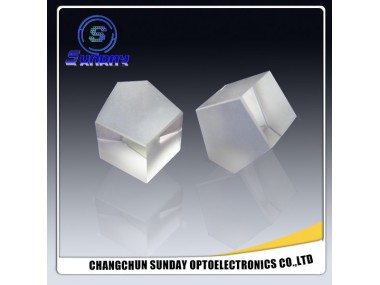

Optical Glass Penta angle prism for camera
Penta prism can deviate an incident beam without inverting or reversing to 90°.The deviation angle of 90° is independent of any rotation of the prism about an axis parallel to the line of intersection of the two reflecting faces. It is commonly used in Plumb Level, Surveying, Alignment, Range finding and Optical Tooling. The reflecting surfaces of this Prism must be coated with a metallic or dielectric coating. The standard Penta Prism reflecting surfaces are coated with aluminum or enhanced aluminum.
Material | Optical glass such as BK7,B270,SF11,Fused silica,sapphire,znse,caf2. |
Size | 2mm to 300mm |
Size tol. | 0.05mm |
S/D | 80/50,60/40,40/20,20/10,10/5 |
Flatness | Lambda/20 to 2lambda |
Angle tol. | 30’’ |
Chamfer | 0.2mmx45 degree |
Coating | AL,Sliver,Golden. |
Welcome your inquiry and questions,you will be replied immediately!
Why Sunday?
1.Sunday design,manufacture,testing together.
2.Sunday has no minimun quantity,sample order is acceptable for customers.
3.Fast delivery based on the 4 production lines.
4.Sunday has good after-sales service.
5.If the quality of our products is unqualified,,sunday promise to produce new ones or repaire them.and we will
responsible for all the cost.
