| 原産地: | 中国(本土) | 電圧: | 220ボルト/ 380ボルト | 銘柄: | tz | モデル番号: | TZWD-220 | 重量: | 900キログラム | 力(W): | 5.5kw | 認証: | iso ce | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | 木製の長さの範囲: | さまざまな | 条件: | 新しい | 木製の損失率: | 5% | 皮率: | 95% | 次元(L*W*H): | 2200*1000*1700ミリメートル | 木製の直径の範囲: | 50ミリメートルに300ミリメートル | 紡錘の速度: | 400r/min | ナイフ量: | 4 |
包装
| 包装: | 木製ケース |
wood bark peeling machine,wood bark peeler,ring type wood bark peeling machine
Introduction of Log Peeler
The machine can peel wood, also known as wood peeling machine, belonging to one of wood working machinery products.
1. Vertical type wood debarker is designed for peeling and clearing up the bark.
2. It can process timber segments with diameter from 50mm to 300mm, with low power consumption, high efficiency, low damage rate for wood fiber.
3. It needs small space, it can be moved by one person and used conveniently and flexibly, it is quite an ideal equipment for processing and clearing up barks.
Operation of Log Peeler
a. Using four-edge knife, easy to use and low cost.
b. Knife plate voltage controlled by the hydraulic control, advanced structure, reliable performance.
c. Feed part adopt stepless speed. It has good peeling effect on the cold wood, curved wood, eucalyptus, oak, elm and other tree species has a good hard.
d. Peeling the net high productivity, little injury for the wood .
Parameter of Log Peeler
Model(TZWD) | TZWD-150 | TZWD-220 | TZWD-260 | TZWD-300 |
Max diameter | 150mm | 220mm | 260mm | 300mm |
Knife quantity | 4 | 4 | 4 | 4 |
Main power | 4.0kw | 5.5kw | 7.5 kw | 7.5 kw |
Introduction of Log Peeler
The machine can peel wood, also known as wood peeling machine, belonging to one of wood working machinery products.
1. Vertical type wood debarker is designed for peeling and clearing up the bark.
2. It can process timber segments with diameter from 50mm to 300mm, with low power consumption, high efficiency, low damage rate for wood fiber.
3. It needs small space, it can be moved by one person and used conveniently and flexibly, it is quite an ideal equipment for processing and clearing up barks.
Operation of Log Peeler
a. Using four-edge knife, easy to use and low cost.
b. Knife plate voltage controlled by the hydraulic control, advanced structure, reliable performance.
c. Feed part adopt stepless speed. It has good peeling effect on the cold wood, curved wood, eucalyptus, oak, elm and other tree species has a good hard.
d. Peeling the net high productivity, little injury for the wood .
Parameter of Log Peeler
Model(TZWD) | TZWD-150 | TZWD-220 | TZWD-260 | TZWD-300 |
Max diameter | 150mm | 220mm | 260mm | 300mm |
Knife quantity | 4 | 4 | 4 | 4 |
Main power | 4.0kw | 5.5kw | 7.5 kw | 7.5 kw |

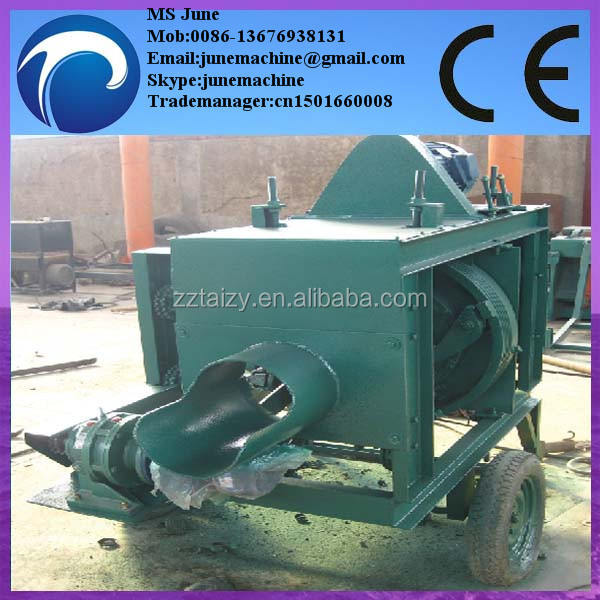

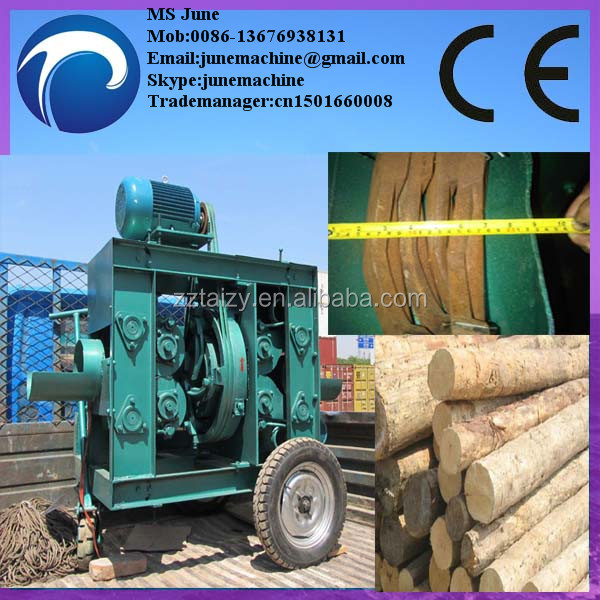

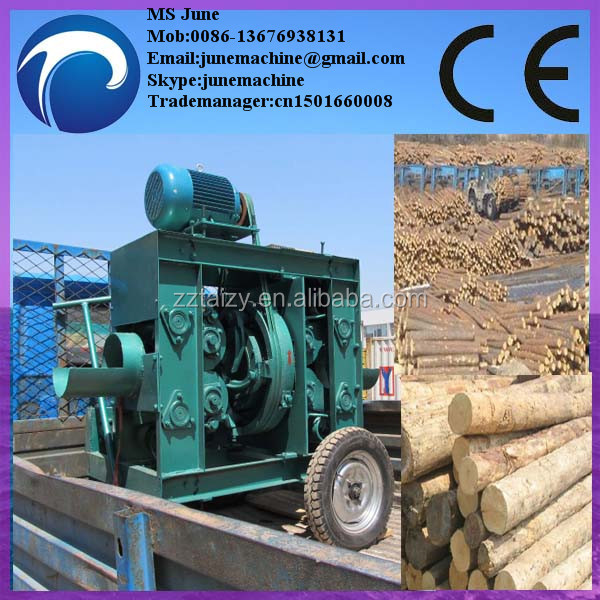

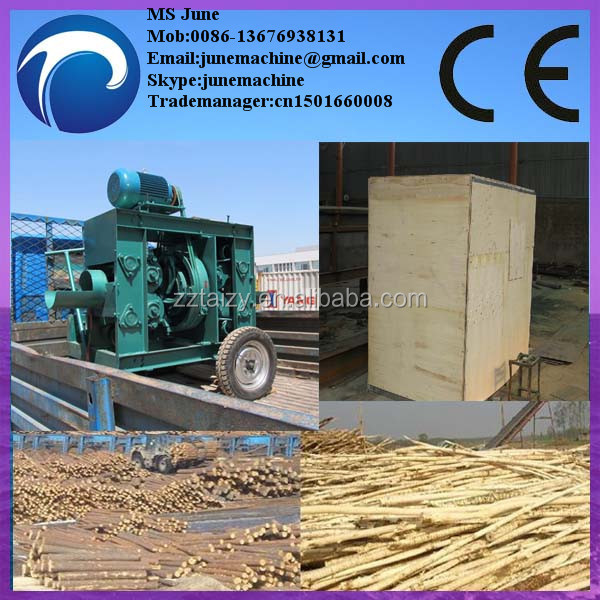

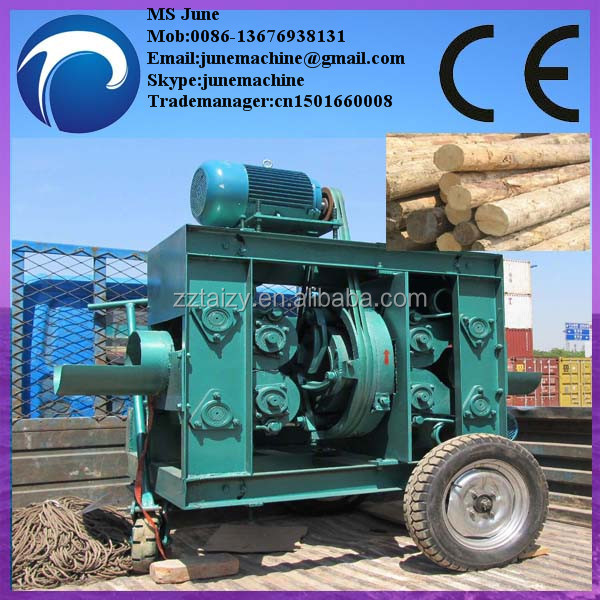

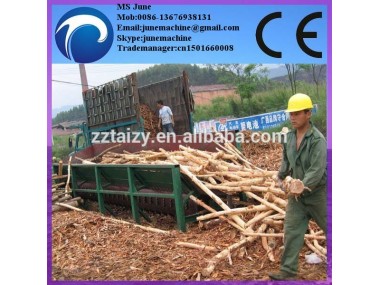

Picture of Log Peeler
