| 電圧: | 220v | 原産地: | 中国(本土) | 銘柄: | aquapure | 条件: | 新しい | モデル番号: | Ozqt0.6- n | 重量: | キロ0.42 | 力(W): | 38w | 保証: | 1 | 認証: | ce | 次元(L*W*H): | ×6081×50mm | プロダクションレート: | 600mg/h | 使用法: | オゾン | オゾン定格出力( 酸素と): | >1550mg/h | オゾン濃度( 酸素と): | >5.0ミリグラム/l | オゾン濃度( 空気と40％r. h): | >3.0mg/l | 定格空気の流れ: | L3- 6/min | 供給ガス: | 通常の空気、 乾燥した空気または酸素 | 出力/入力接続: | 径。 6.0mm | オゾン生成方法: | コロナ放電 | 冷却システム: | 空気冷却、 推奨40cfmファン | 入力電圧: | 220vac50hz( 60ヘルツオプション) | 生活: | >10、 000オードブル |
包装
| 包装: | バブルパッケージングとカートン |

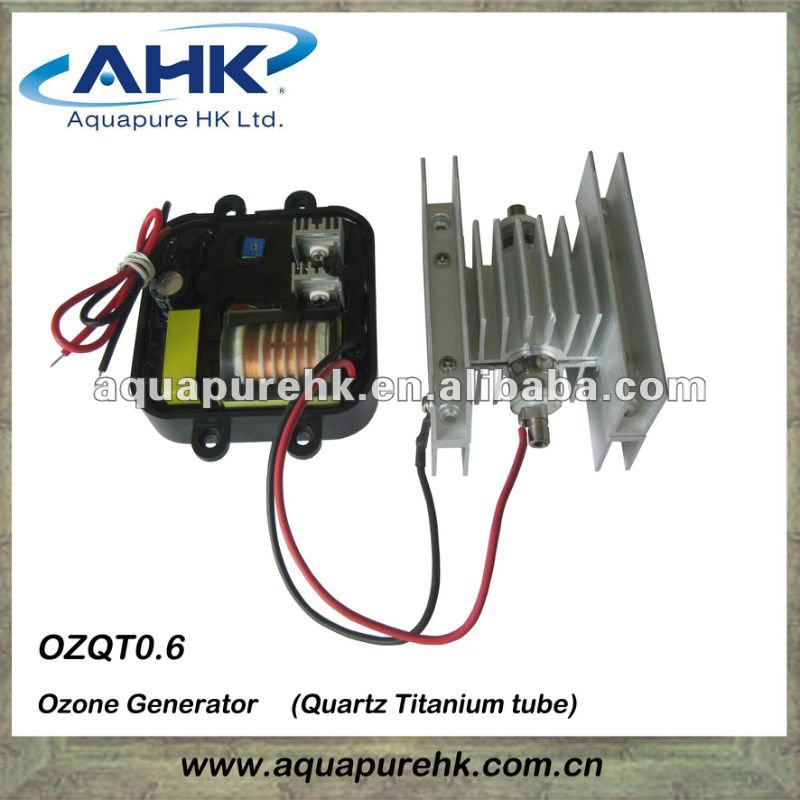

Small Ozone Generator OZQT0.6-N
The Aquapure family of Small Ozone Generator units are designed for maximum performance by using a quartz glass outer tube and a titanium inner tube design. They will operate well on air at various levels of humidity and especially pure oxygen. Best performance will be reached if an air drier is used in the air inlet.
Functions and Features:
1.high performance and compact size
2.very stable performance
3.the best and the most suitable material: quartz tube, Titanium Electrode
4.extra long life, over 10,000hrs, when compare to other ozone generators on the markets
5.very easy installation with very reasonable design
6.fan cooled, using cooling ribs
7.quartz tube can be easily cleaned,should it become contaminated.
8.high ozone concentration with normal air source: > 5 mg/L
| ||||||||||||||||||||||||||||||||
APPLICATION | |
Aquapure - AP series of MINI Ozone Generator can be widely applied | |
in varied industries for sterilization and disinfection, etc. | |
Principal applications as below: |
|
1. Agriculture : | 5. Drinking and Bottled Water: |
Preserve fruit and vegetables | Drinks plant |
2. Meat and Food : | 6. Hospital s: |
Slaughterhouses | Operating room sterilization |
Food factory | Ward disinfection |
Poultry breeding | 7. Air Conditioning: |
Health care products factory | Water cooled air conditioner |
3. Pharmaceutical : | Cooling Towers |
Sterile disposable medical devices | 8. Laundries: |
Dental products | Hotels |
Surgical instruments | Hospitals |
4. Swimming, SPA, Bathing: | Old people homes |
SPA Bathing | 9. Others |
