| 注入の重量: | 10.5g | 原産地: | 中国(本土) | 銘柄: | 崑 | モデル番号: | Kl-10t | 力(W): | 2.2 | 認証: | ce | 提供される売り上げ後のサービス: | 利用できる海外第三者サポート | タイプ: | 管のヘッド注入 | プラスチックタイプ: | 熱可塑性 | 条件: | 新しい | 様式: | 横 | 開始打撃: | 200mm | 自動: | はい | 力を締め金で止めること: | 100kn | ネジ径: | 16mm | スクリュー速度: | 0-150r/min | の注入速度: | 50mm | プラテンサイズ: | 250*270mm | ejetor力: | 6kn | 油圧最大圧力: | 14mpa( kgf/cm2) | サイズ: | 1.6*0.45*1.2( m) | 重量: | 400kg | 用法: | 小さな部品やコンポーネントインジェクション | ドライビングスタイル: | 油圧 |
包装
| 包装: | ポリマー木製ケース。 |

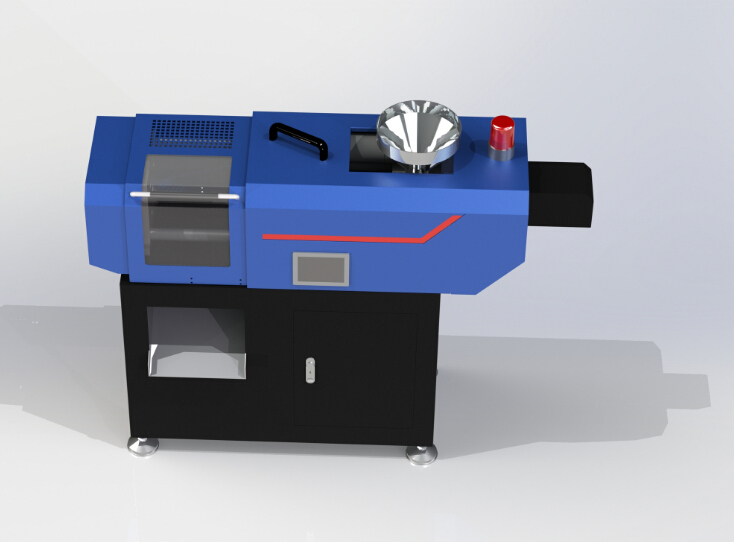

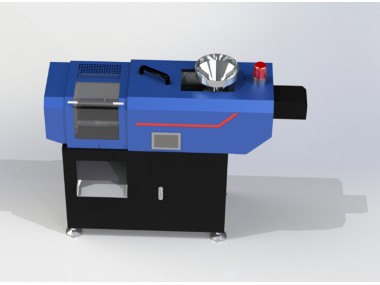

10 ton Hydraulic desktop small plastic injection moulding machine
Features of the small plastic injection moulding machine
1. Compact-structure, Small-sized
2. High accuracy, cost less
3. Precise control system
4. Easy to fit in auto production line for industrial usage
5. Cantilever double-mouldboard clamping system for space saving.
6. Rational-design diagonal pulling rod for maintenance of plasticification unit, moulds area and pulling rod.
7. Fully Hydraulic-pressure driven, double-proportion-valve controlled. The Hydraulic injection moulding machine is more stable.
Kunlun desktop injection moulding machine is a superior player in Optical communications, video transmission , biomedical , information storage, precision machinery, especially in mass production of precision parts and components at low cost.
Kunlun test instrument Co.,Ltd, founded in 2006, is a high-tech enterprise specialized in developing and manufacturing of small in jection moulder. For 8 years, Kunlun has been working on innovation and R&D, which enables Kunlun to be leading in advanced technology, perfect quality system, good service in this field with ASTM, JIS, ISO, IEC, UL, GB met.
