| 原産地: | 中国(本土) | 銘柄: | キャタピラー | モデル番号: | 140 h | 作りなさい: | イモムシ | 重量: | 14677 | 年: | 2003年 | 条件: | 使用される | 認証: | ce bv | 次元(L*W*H): | 8.7*2.5*3.1メートル | 逆の速度(km/h): | 34.7 | 前方速度(km/h): | 44 | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | 色: | イエロー | 無料: | すべての世界 | 保証: | 一年 |
包装
| 包装: | コンテナ内のorバルク貨物で |
Product Description
Used motor grader
CAT 140H
New cat graders for sale
CAT 140H Used GRADERS FOR SALE
Location: Shanghai China
Year: 2003
Low working hours: 4600 hrs
Price: Negotiable
Place of Origin: China
Excellent running condition
Payment Terms: By TT Bank Transfer, 30% deposit+ 70% balance
Delivery time: within 7 working days from your payment
Engine
Make | Caterpillar | |
Model | 3176C DITA ATAAC VHP | |
Net Power Gear 1-2 | 165 hp | 123 kw |
Net Power Gear 3-4 | 185 hp | 138 kw |
Power Measured @ | 2000 rpm | |
Net Power Gear 5-6 | 185 hp | 138 kw |
Number of Cylinders | 6 | |
Net Power Gears 7-8 | 185 hp | 138 kw |
Max Power | 185 hp | 138 kw |
Displacement | 629 cu in | 10.3 L |
Operational | ||
Std Operation Weight - Front Axle | 9123 lb | 4138 kg |
Std Operation Weight - Rear Axle | 23234 lb | 10539 kg |
Std Operation Weight - Total | 32357 lb | 14677 kg |
Max Operation Weight - Front Axle | 16733 lb | 7590 kg |
Max Operation Weight - Rear Axle | 30139 lb | 13671 kg |
Max Operation Weight - Total | 46872 lb | 21261 kg |
Fuel Capacity | 105 gal | 397 L |
Cooling System Fluid Capacity | 10 gal | 38 L |
Hydrauilc System Fluid Capacity | 20.8 gal | 80 L |
Rear Diff/Final Drive Fluid Capacity | 12.4 gal | 47 L |
Circle Gearbox Fluid Capacity | 1.8 gal | 7 L |
Tandem Case Fluid Capacity (each) | 16.9 gal | 64 L |
Transmission | ||
Type | direct drive, power shift | |
Number of Gears - Forward | 8 | |
Number of Gears - Reverse | 6 | |
Max Speed - Forward | 27.4 mph | 44 km/h |
Max Speed - Reverse | 21.6 mph | 34.7 km/h |
Steering | ||
Articulation L/R | 20 degrees | |
Turning Radius | 24.6 ft in | 7.5 m |
Front Axle | ||
Wheel Lean | 18 degrees | |
Oscillation - Total | 32 degrees | |
Ground Clearance | 2 ft in | 600 mm |
Hydraulic System | ||
Pump Type | axial piston | |
Pump Flow | 54.4 gal/min | 206 L/min |
Relief Valve Pressure | 3500 psi | 24150 kPa |
Moldboard | ||
Moldboard Width | 12 ft in | 3658 mm |
Moldboard Height | 24 in | 610 mm |
Moldboard Thickness | 0.87 in | 22 mm |
Max Depth of Cut | 28.1 in | 715 mm |
Side Shift Left | 20.6 in | 524 mm |
Side Shift Right | 26 in | 660 mm |
Blade Pull at Max Weight | 42184 lb | 19135 kg |
Blade Down Pressure | 28697.6 lb | 13017 kg |
Circle | ||
Diameter | 60.2 in | 1530 mm |
Shift Left | 27.4 in | 695 mm |
Shift Right | 28.7 in | 728 mm |
Max Reach Outside Tires - Left | 74.6 in | 1896 mm |
Max Reach Outside Tires - Right | 77.9 in | 1978 mm |
Max Lift Above Ground | 18.9 in | 480 mm |
Blade Tip Angle - Front | 40 degrees | |
Blade Tip Angle - Rear | 5 degrees | |
We welcome you to come our yard to check the machines and test the working condition as you like.
1) High Quality and low price, 100% original
2) Strong Mechanical Team, all machines are well serviced and regular maintenance
We will offer you additional service as follows:
1) Help you book the comfortable and cheap hotel
2) Pick you up in the airport
3) Guide you to visit Shanghai city
Contact us
If you need any more information, please feel free to contact me at any time.
Mob: 0086 15800691978
Skype: usedheavymachine
Whatsapp: 0086 15800691978

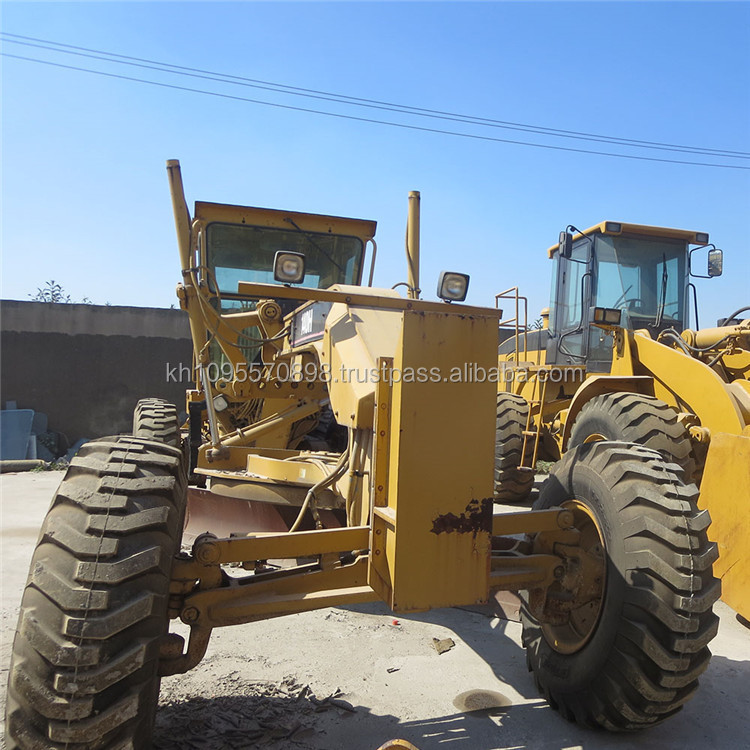

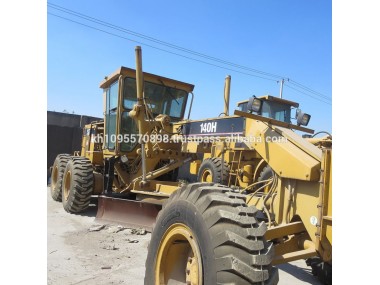

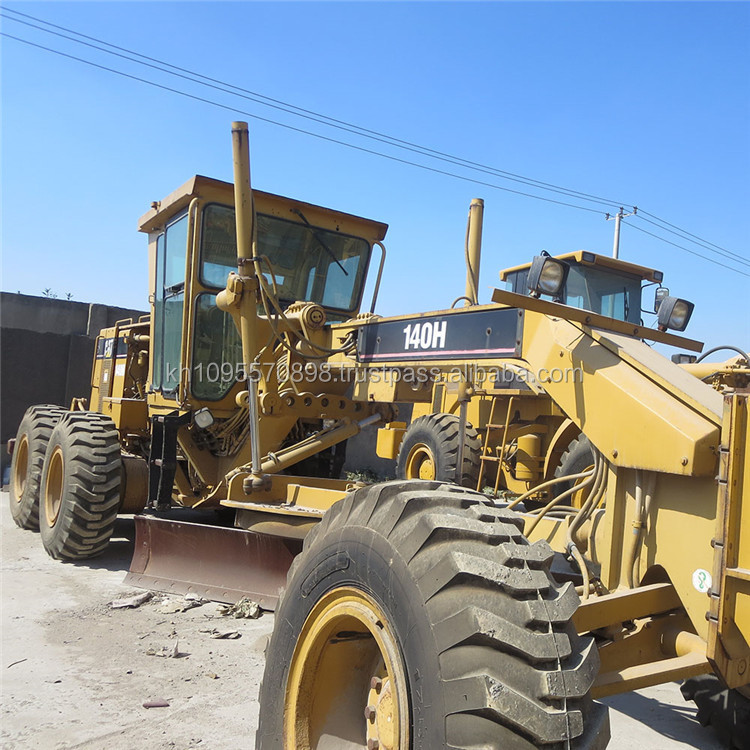

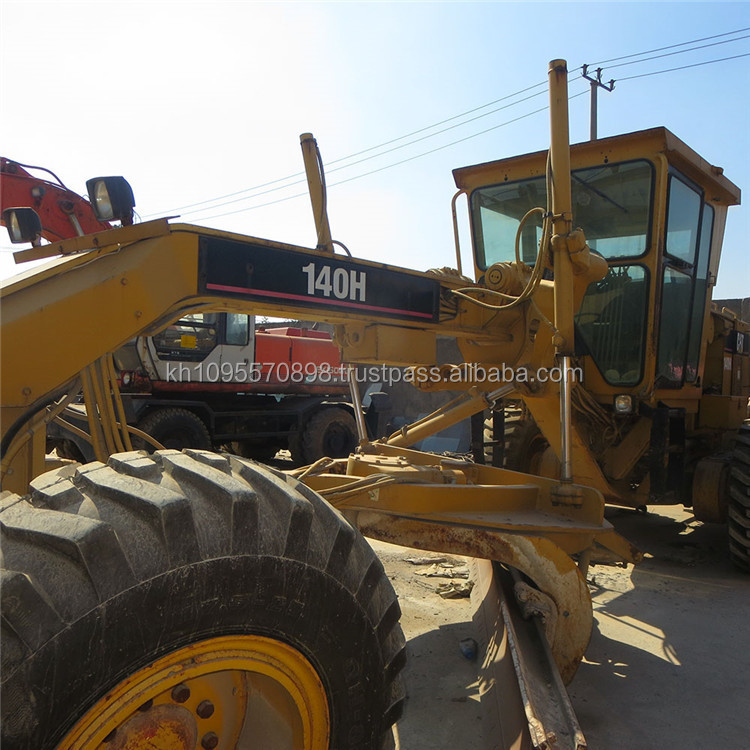

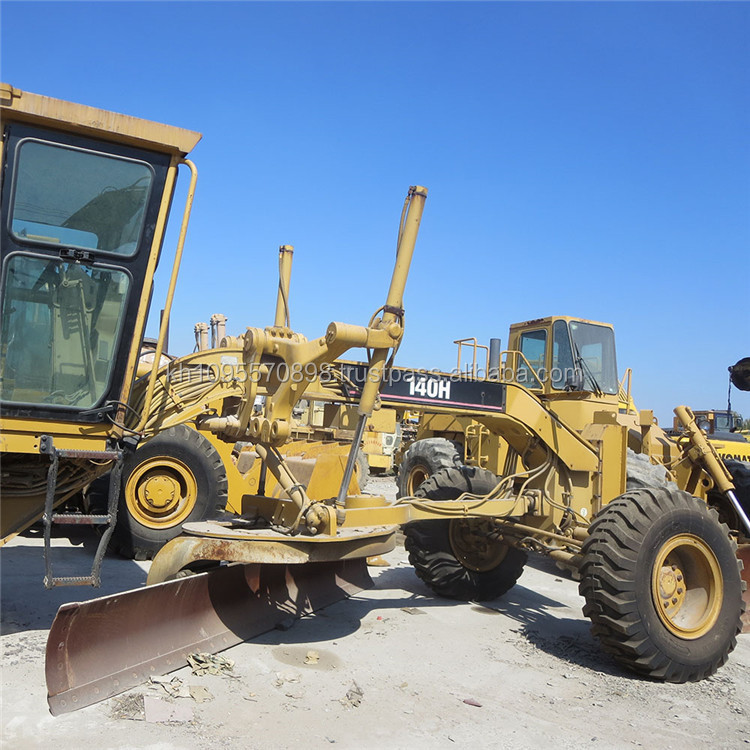

Photos
.jpg)
