| 原産地: | 中国(本土) | 銘柄: | xcmg | モデル番号: | GR180 | 重量: | 15400キログラム | 条件: | 新しい | 認証: | sgs/ciq | 次元(L*W*H): | 8900 × 2625 × 3470ミリメートル | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため |
包装
| 包装: | ヌードパッキングまたは40hq/unit |

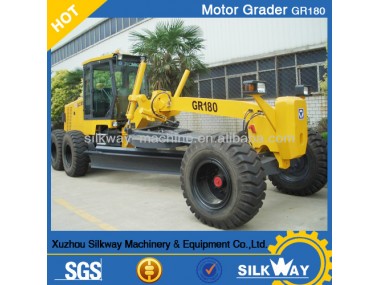

Basic specification | |
|---|---|
| Engine model | 6CTAA8.3 D6114 |
| Rated power/speed | 138kW/2200 |
| Dimension(LxWxH) | 8900×2625×3470mm |
| Operating weight(Standard) | 15400kg |
Performance specification | |
| Travelling speed ,forward | 5,8,11,19,23,38 km/h |
| Travelling speed ,reverse | 5,11,23 km/h |
| Tractive force(f=0.75) | 79KN |
| Max. gradeability | 20% |
| Tire inflation pressure | 260 kPa |
| Working hydraulic pressure | 16 MPa |
| Transmission pressure | 1.3~1.8MPa |
Operating specification | |
| Max. steering angle of front wheels | ±50° |
| Max. lean angle of front wheels | ±17° |
| Max. oscillation angle of front axle | ±15° |
| Max. oscillation angle of balance box | 15 |
| frame articulation angle | ±27° |
| Min. turning radius using articulation | 7.3m |
| Biade | |
| Maximum lift above ground | 450mm |
| Maximum depth of cutting | 500mm |
| Maximum blade position angle | 90° |
| Blade cutting angle | 28°—70° |
| Circle reversing rotation | 360° |
| Moldboard width X height | 3965×610mm |
If you have any requirment, feel free to contact me please.
