| 原産地: | 中国(本土) | 銘柄: | zot | モデル番号: | G8200/G8220 | 重量: | 17000 | 条件: | 新しい | 認証: | iso | 次元(L*W*H): | 9450*2601*3440 | 逆の速度(km/h): | 23 | 前方速度(km/h): | 38 | 提供される売り上げ後のサービス: | 利用できる海外サービスセンター | オプション: | ブレード/リッパー |
包装
| 包装: | ヌードパッキング |

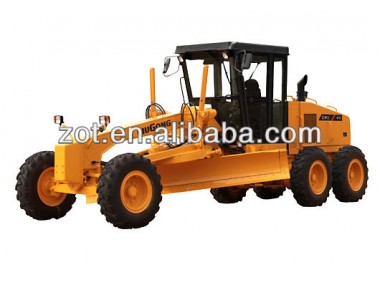

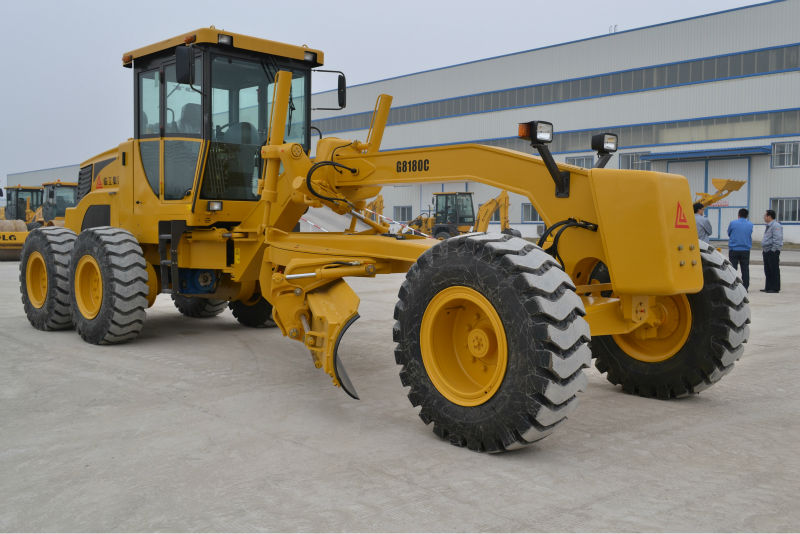

SDLG motor grader G8200/G8220 with ripper and blade/cummins engine
Introduction:
As a latest product developed by SDLG, G 8200 G8220 grader features preeminent performance, fashionable appearance, and advanced driving performance, operating performance, reliability and care & maintenance performance in the industry. It is mainly employed in the land leveling and roadway excavation of large areas like roads, airports, farmlands etc.; transferring of soils and crushed stones; ditching and slope scraping; pavement leveling; snow removing etc, is an indispensable engineering machinery for national defense engineering, mine construction, road construction, water conservancy project construction, farmland improvement etc
Details of the grader:
| Engine model | 6CTAA8.3 6CTA8.3 |
| Rated power/speed | 153kW/2200rpm 160kW/2200rpm |
| Dimension(LxWxH) | 8970×2625×3470mm |
| Operating weight(Standard) | 16500kg |
| Performance specification | |
| Travelling speed ,forward | 5,8,11,19,23,38 km/h |
| Travelling speed ,reverse | 5,11,23 km/h |
| Tractive force(f=0.75) | 82KN |
| Max. gradeability | 20% |
| Tire inflation pressure | 260 kPa |
| Working hydraulic pressure | 16 MPa |
| Transmission pressure | 1.3~1.8MPa |
| Operating specification | |
| Max. steering angle of front wheels | ±50° |
| Max. lean angle of front wheels | ±17° |
| Max. oscillation angle of front axle | ±15° |
| Max. oscillation angle of balance box | 15 |
| frame articulation angle | ±27° |
| Min. turning radius using articulation | 7.3m |
| Biade | |
| Maximum lift above ground | 450mm |
| Maximum depth of cutting | 500mm |
| Maximum blade position angle | 90° |
| Blade cutting angle | 28°—70° |
| Circle reversing rotation | 360° |
| Moldboard width X height | 4270×610mm |
Warranty:
1. 12months
2. service and parts supplying;
3. overseas parts station and engineers available
contact way:
Mr. Gavin Mobile: 86 18615172419 skype: yxianqiang
