Product Introduction
High quality vibrating concrete level screed for road construction
1. Vibrating Concrete truss screed is mostly used to pave vibrating impact the concrete surface, bridges concrete surfaces, large parking slurry and other large of factory concrete surfaces.
2. This is designed with exact paving system, suitable and perfect for large concrete surfaces.
3. The Max depth of impaction can be up to 20 centimeter
Main Parameter
| Type | RWZP55X(≤)5500mm | RWZP90X(≤)8500mm | RWZP130X(≥)9000mm |
| Compaction | |||
| Nominal amplitude | 0.6mm | ||
| Vibrating frequency | 70Hz | ||
| Exciting force | 11kN/(≤)2000mm | ||
| Engine | |||
| Model | HonDA GX160 | HonDA GX270 | HonDA GX390 |
| Type | Gasoline engine,air cooled, 4stroke, OHV, single cylinder | ||
| Power | 5.5hp/3600rpm | 9.0hp/3600rpm | 13.0hp/3600rpm |
| Fuel tank volume | 3.6L | 6L | 6.5L |
| Lubricant L | 0.6L | 1.1L | |
| Fuel consumption | 313g/kWh | ||
| Dimension | |||
| 2m linker | 405mm×2000mm | ||
| 1m single linker | 405mm×1000mm | ||
| 0.5m single linker | 405mm×250mm | ||
| Note, The chosen length of machine should be 500mm longer than real construction width. | |||

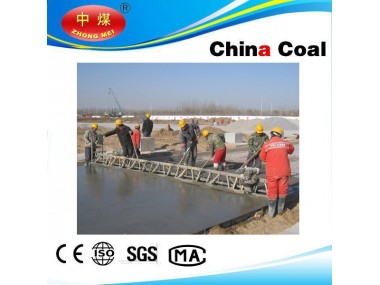

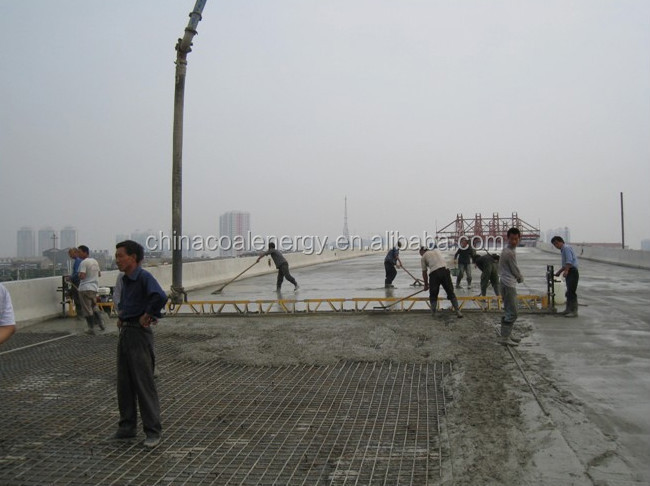

Figure Photos
