| 電圧: | 380ボルト | 原産地: | 中国(本土) | 銘柄: | dth | 製品容量: | 10 | モデル番号: | TDG90 | 重量: | 200キログラム | 力(W): | 2kw | CNCまたはない: | 正常 | 条件: | 新しい | 認証: | iso9001: 2008 | ボーリング直径: | 110〜800ミリメートル | ボーリングバー直径: | 90ミリメートル | 退屈なストローク: | 300ミリメートル、500ミリメートル、1000ミリメートル | 送り速度: | 0.16ミリメートル、0.28ミリメートル/rev | サポート: | 中央のサポート、クロスサポート | rpm: | 0-45 rpm | フィード: | オートフィード | 電源: | 18.5kw |
包装
| 包装: | 木製ケース |
Application
Processing and repairing of pipe innerhole, engineering machine, small scaled ship fixed hole, ship axis hole, etc.
Processing and repairing of pump body,valve , turbine holes,etc.
Providing services for many fields, such asmining, marine engineering, shipping, petrol, electric power, etc.
Description
Impact structure, easy to operate , installand dismantle.
high-trength alloy steel boring rod and accurate transmission structure can guarantee the accuration and efficiency ofprocessing.
High accurate spherical roller bearing isused in supporting seat, enabling quick installation and adjustment of machine before
machining.
Vertical, horizontal or tilt installation.can be chosen.
Power unit includes electrical and hydraulic power, equipped with remote control box, which make much more convenience.
many kinds of machining can be achievedwith appropriate parts, such as boring, end surface machining, drilling,expanding hole,
blind hole boring,etc.
Technical Details
Boring bar diameter | 90mm | |
Boring diameter | 110-800mm | |
boring stroke | 300mm,500mm,1000mm | |
Feed rate | 0.16mm,0.28mm/rev | |
Facing head assembly | 260-650mm | 260-800mm |
support | central support ,cross support | |

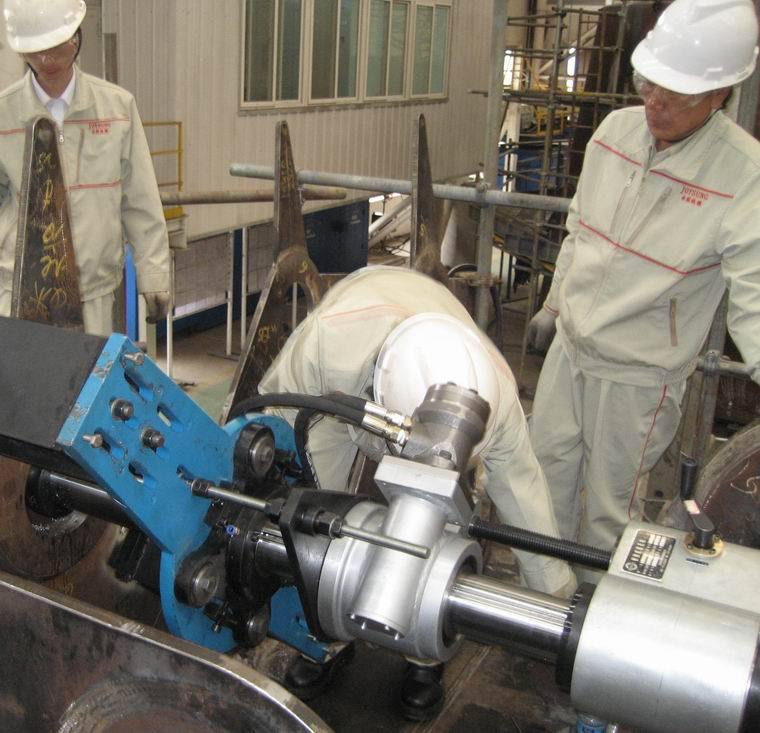

On site picture:
