原産地: | 中国(本土) | 電圧: | ac220v | 銘柄: | questt | モデル番号: | Signage-200 | 現在: | 25a | 重量: | 340キログラム | タイプ: | 他の | 認証: | ce、iso | 使用法: | 溶接 | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | 次元: | 1530*810*1100ミリメートル+ 960*760*1150ミリメートル+ 960*670*950ミリメートル= 2.8CBM | 評価される使用率: | 100 | 評価される容量: | 200 | 証明書: | ce isoのbacl fda sgs | サービス: | ドアへの扉 | 会社タイプ: | 工場 | oem: | ok | レーザーパワー: | 200ワット400ワット500ワット | 制御システム: | シングルチップマイクロプロセッサ | レーザー: | yag | 加熱: | 熱風と赤外線を組み合わせる | レベル: | 半自動機 | 波長: | 1064nm |
包装
包装: | 標準輸出木材パッケージ保護することができるマシンよく用チャンネル文字用看板 |

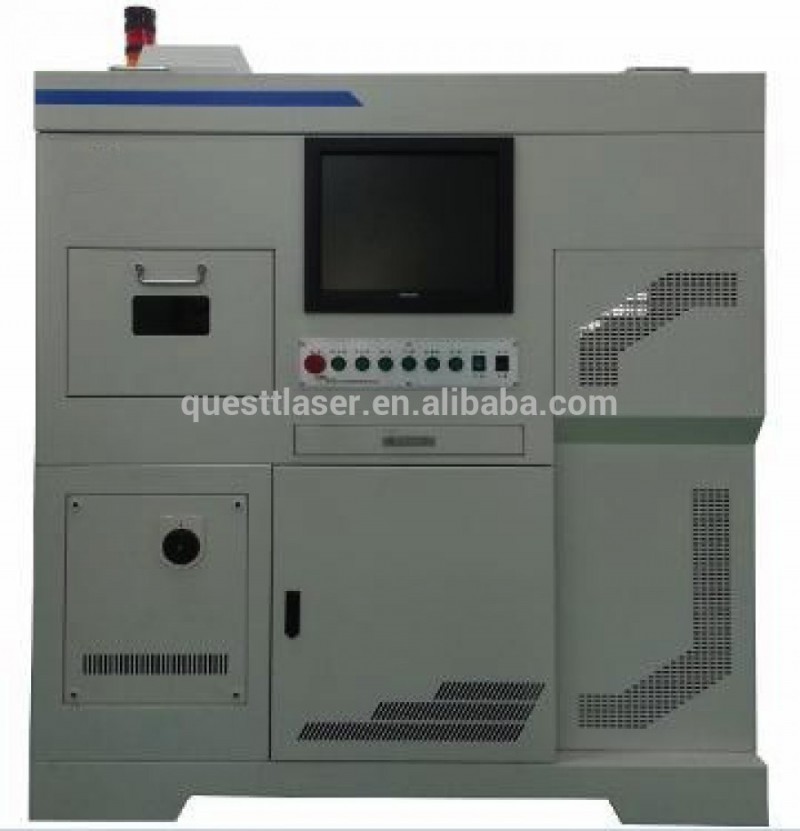

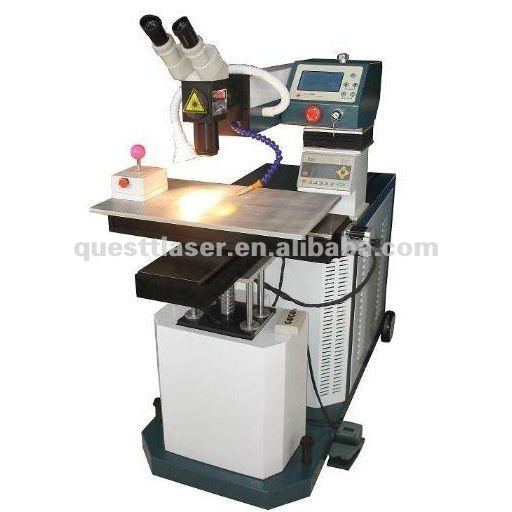

Stainless steel Laser channel letter welder signage 3D ads sign
Features:
Application material: Aluminum, stainless steel, steel plate, iron plate and other metal and alloy.
Red light fast positioning, CCD display, microscope optional.
Adjustable working table allows welding from small size to big of work piece.
Fast working speed; professional jig ensures the focus fixed and makes welding easier without using CCD or microscope.
Slight distortion and affect by heating.
Capable of partial heating process.
Able to deal with complex, profiled, or tiny letters.
Ultrafine positioning rod makes the welding of tiny corner easier without changing spot position
New metal processing technology brings higher quality of end products
Low noise & cost maintenance, no pollution, long using life.
Configuration
No: | Item | Description | Quantity | Origin | Remark |
1 | YAG Cavity | Ceramic | 1 set | UK | Morgen |
2 | Thermostatic water cooling machine | Boding | 1 set | Shenzhen | less noise and low power consumption |
3 | Optical lens | Wavelength | 1 set | Singapore | focal length 150mm |
4 | Laser power | QALASER | 1 set | Wuhan |
|
5 | CCD | Observation system | 1 set | Shenzhen | standard configuration |
6 | YAG bar | BOET | 1 set | Beijing |
|
Technical Parameters:
Model | Signage-200 |
Laser working substance | Nd3+:YAG crystal & gilded resonance cavity |
Rated power | 200W |
Max. single-pulse energy | 120J |
Max. peak power | 12KW |
Laser wavelength | 1064nm |
Focused facula diameter | 0.10-3.0mm Adjustable |
Pulse width | 0.2-20ms adjustable |
Pulse frequency | 1-30HZ Adjustable |
Pulse depth | ≤6mm |
Working table scale | 750*1000mm |
3-axis itinerary | X=700mm Y=150mm Z=200mm |
Controlling system | Single-chip microprocessor |
Observing system | CCD |
Cooling system | Water chiller 380V/50HZ or 60HZ |
Packing Size | 1530*810*1100mm + 960*760*1150mm +960*670*950mm=2.8CBM |
Gross weight | 340KG |
